PTFE Steel Wire Spiral Braided Flexible Hose 1/2 5/8 3/4 1 Inch Lightweight Custom Size
PTFE Steel Wire Spiral Braided Flexible Hose 1/2 5/8 3/4 1 Inch Lightweight Custom Size
Specifications
Place of Origin :
China
Brand Name :
MEGAHOSE
Temperature resistance :
-65°C to 220°C
Transmission media :
fuel, gas, strong acids, strong alkalis
Feature :
lightweight, flexible bending
MOQ :
5pcs
Price :
Negotiation
Packaging Details :
pp packing carton packing
Delivery Time :
5-10 days
Payment Terms :
T/T, L/C
Description

PTFE Steel Wire Spiral Braided Hose

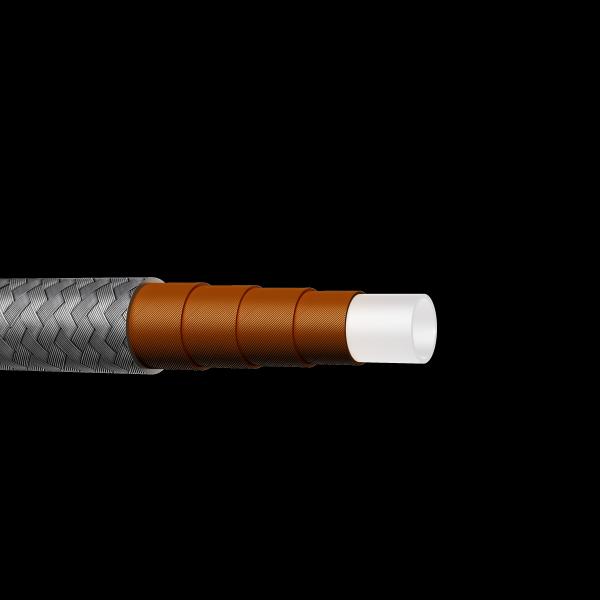

Structure

lnner PTFE straight pipe, lightweight, flexible bending performance, reinforced with one or two layers of copper plated steel wire winding in the middle layer, and 304 stainless steel braided steel wire on the outer layer； Temperature resistance -65°C to 220°C .

Transmission media:

various organic solvents such as fuel, gas, strong acids, strong alkalis, etc.


Application

Transmission of various hazardous chemicals； Fuel, coolant, and lubricant delivery pipelines；Hydraulic machinery,trains, automobiles, ships, airplanes, rockets, spacecraft, satellites, and other pipelines.

Data sheet

PTFE Steel Wire Spiral Braided Hose
No. Inner
diameter		 Outer
diameter		 Outer diameter of
woven products		 Working pressure Burst pressure Minimum bending
radius
(mm±0.2) (mm±0.2) (mm±0.2) (psi) (mpa) (psi) (mpa) (inch) (mm)
JCC-03113-PTFE 1/2" 12.7 15.1 19.3 6394.5 44 25578 176.4 3.54 90
JCC-03116-PTFE 5/8" 15.8 18.8 22.8 5165.6 36 20663 142.5 4.72 120
JCC-03119-PTFE 3/4” 18.8 21.8 26.2 4756 33 19024 131.2 5.91 150
JCC-03125-PTFE 1" 25.0 29 33.0 3918.6 27 15675 108.1 8.86 225
