Wheel Home Pv Battery Storage 48V 280Ah 13.44kwh Battery Power Storage For Homes
Wheel Home Pv Battery Storage 48V 280Ah 13.44kwh Battery Power Storage For Homes
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1600-$2000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

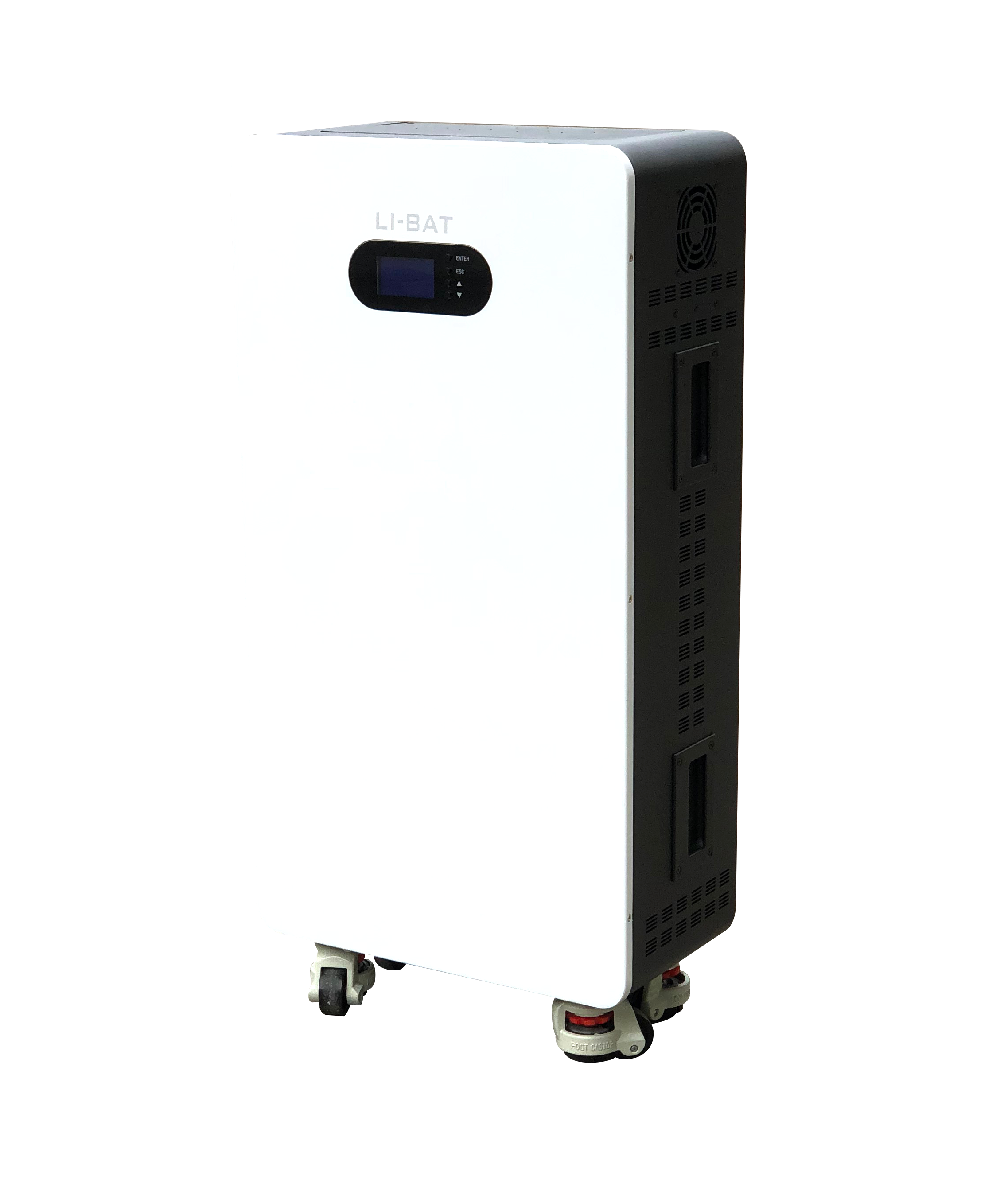

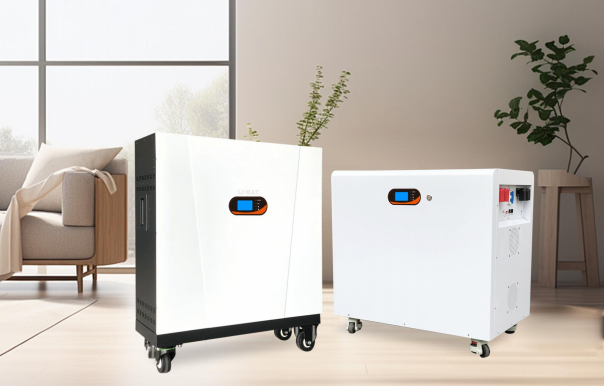

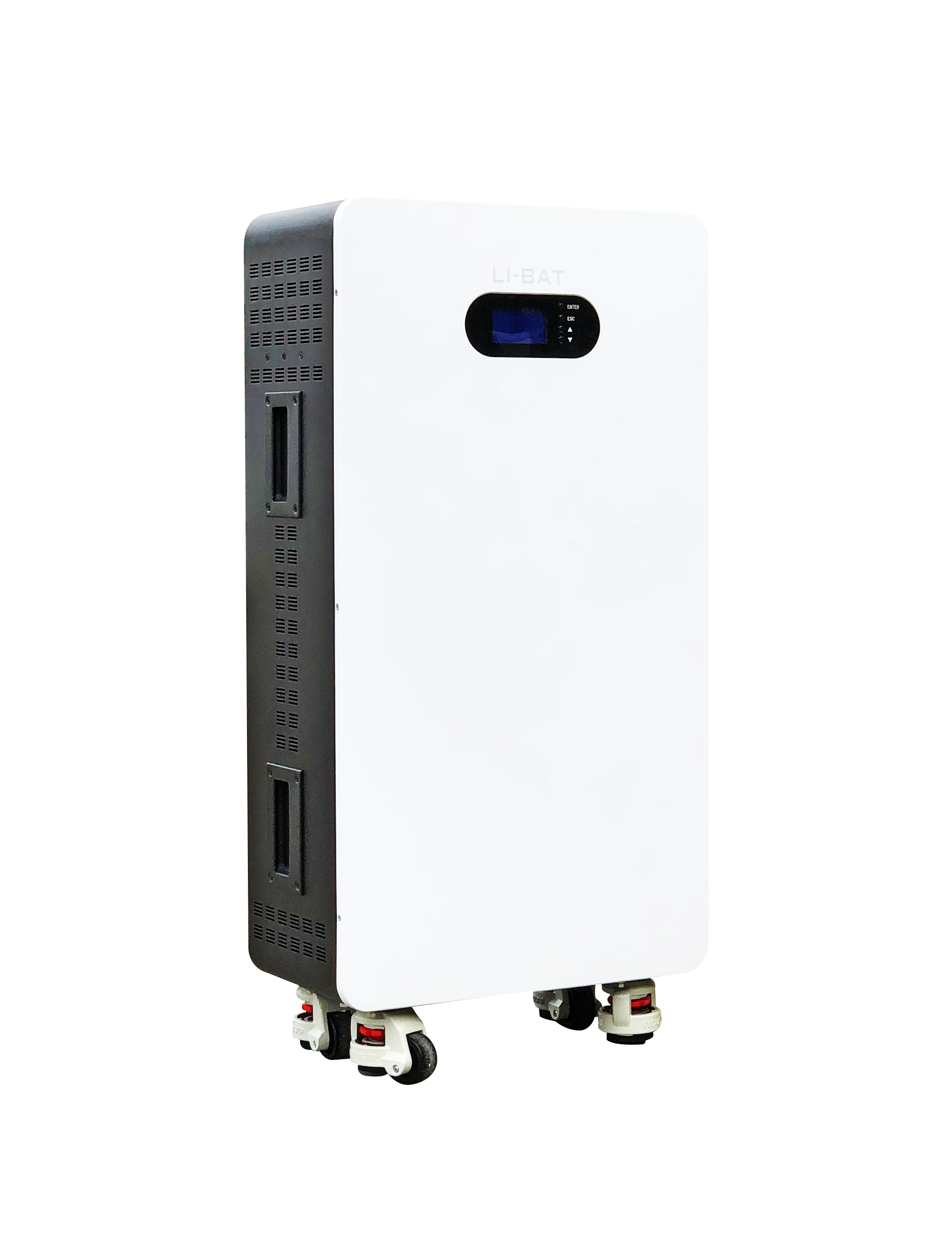

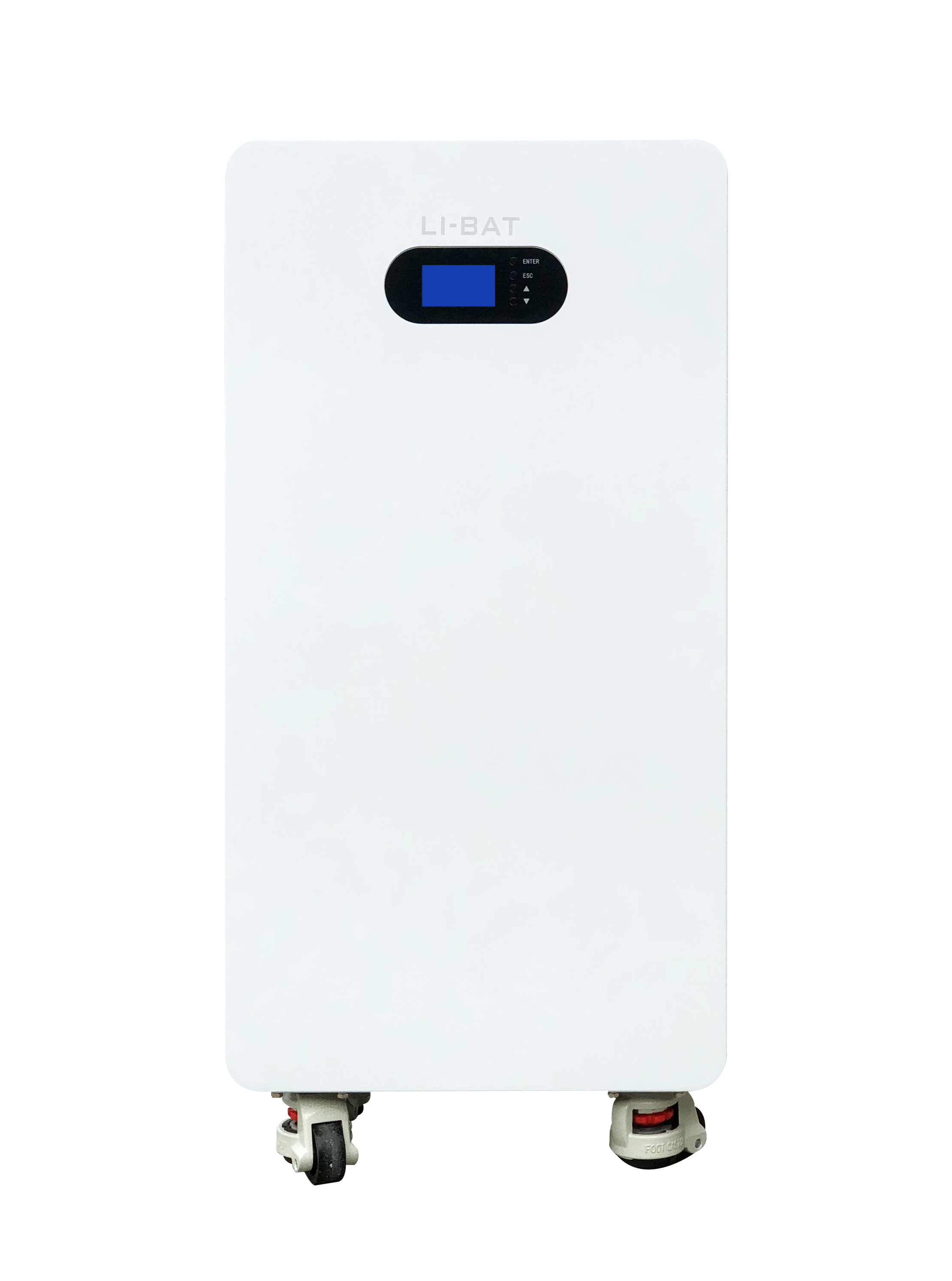

13kWh Wheel Type LiFePO4 Batteries
Product Overview
Our wheel-designed LiFePO4 batteries combine elegant aesthetics with practical mobility. Featuring comprehensive multi-level protection strategies and fault isolation measures, these batteries ensure safe, reliable operation for small commercial and residential energy storage applications.
Key Features
  • Integrated wheel design for easy transportation and positioning
  • Embedded wiring system for enhanced safety and reliability
  • Standard LCD display for real-time battery status monitoring
  • Direct inverter protocol selection via display interface
  • Environmentally friendly materials without heavy metals
  • Standard cycle life exceeding 5,000 cycles
    other
    Factory Direct Supply: Own production base with direct order processing to ensure supply efficiency
    Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)
    Customization Service: Product parameters (such as voltage, interface) can be customized according to customer requirements
Wheel Home Pv Battery Storage 48V 280Ah 13.44kwh Battery Power Storage For Homes
Wheel Home Pv Battery Storage 48V 280Ah 13.44kwh Battery Power Storage For Homes
Wheel Home Pv Battery Storage 48V 280Ah 13.44kwh Battery Power Storage For Homes
Wheel Home Pv Battery Storage 48V 280Ah 13.44kwh Battery Power Storage For Homes
Technical Specifications
Model: CH--GBP48-280L
Parameter Specification
Nominal Voltage (V) 48
Cell Specification 280
Nominal Capacity (Ah) 280
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 150
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 248*680*880
Weight (kg) 137
