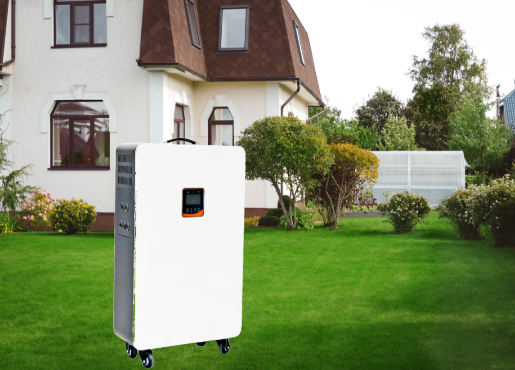

48V 314Ah 15.07kWh Home Storage Battery Systems Wheel Household Energy Storage Battery
48V 314Ah 15.07kWh Home Storage Battery Systems Wheel Household Energy Storage Battery
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1500-1700
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Model :
15KWH
Maximum Dimension(D*W*H)mm :
248*680*880
Description
15kWh Wheeled Lithium Iron Phosphate Battery
Powerful performance with 15kWh capacity, highly flexible wheel design, over 5,000 cycle life, and exceptional durability. The 48V rated voltage delivers robust power for various applications.
Product Overview
This wheel-designed battery features an attractive shape and convenient mobility. It includes mainstream market inverter protocols for direct communication and employs comprehensive multi-level battery protection strategies with fault isolation measures to ensure safe system operation. Widely used in small commercial and family energy storage applications.
Key Features
  • Wheeled design for easy mobility and transportation
  • Embedded wiring system for safe and reliable operation
  • Standard LCD display for real-time battery status monitoring
  • Direct inverter communication protocol selection on screen
  • Environmentally friendly materials with no heavy metals
  • Standard cycle life exceeding 5,000 cycles
48V 314Ah 15.07kWh Home Storage Battery Systems Wheel Household Energy Storage Battery
Technical Specifications
Parameter Specification
Model CH--GBP48-314L
Nominal Voltage (V) 48
Cell Specification 314
Nominal Capacity (Ah) 314
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 150
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 248*680*880
Weight (kg) 141
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing and quality control.
Flexible Production Capacity: Supports small batch trial orders with minimum order quantity of 1 unit.
Customization Service: Product parameters including voltage and interface specifications can be customized according to customer requirements.
