5000 Cycles Residential Storage Battery 15.07kWh 48V 314Ah Residential Power Storage
5000 Cycles Residential Storage Battery 15.07kWh 48V 314Ah Residential Power Storage
Specifications
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
$1500-1700
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Model :
15KWH
Maximum Dimension(D*W*H)mm :
248*680*880
Description

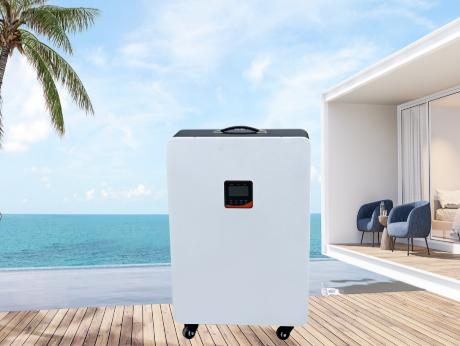

15kWh Wheel Type LiFePO4 Battery
48V nominal voltage residential energy storage battery with wheeled design and 5000+ cycle life for reliable power solutions.
Product Overview
This wheel-designed battery features an attractive appearance and convenient mobility. It includes mainstream inverter protocols for direct communication and employs comprehensive multi-level battery protection strategies with fault isolation measures to ensure safe system operation. Widely used for small commercial and residential energy storage applications.
Key Features
  • Wheeled design for easy mobility and positioning
  • Embedded wiring system for safe and reliable operation
  • Standard LCD display for real-time battery status monitoring
  • Direct inverter communication protocol selection via display
  • Environmentally friendly materials without heavy metals
  • Standard cycle life exceeding 5,000 cycles
Technical Specifications
Model CH--GBP48-314L
Nominal Voltage (V) 48
Cell Specification 314
Nominal Capacity (Ah) 314
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 150
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 248*680*880
Weight (kg) 141
5000 Cycles Residential Storage Battery 15.07kWh 48V 314Ah Residential Power Storage
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing and quality control.
Flexible Production: Supports small batch trial orders with minimum order quantity of 1 unit.
Customization Service: Product parameters including voltage and interface specifications can be customized to meet specific customer requirements.
