51.2V 628Ah Residential LiFePO4 Battery 32.15kWh Home Solar Energy Storage
51.2V 628Ah Residential LiFePO4 Battery 32.15kWh Home Solar Energy Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$3500-3700
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Nominal Voltage (V) :
51.2V
Color :
white
Description

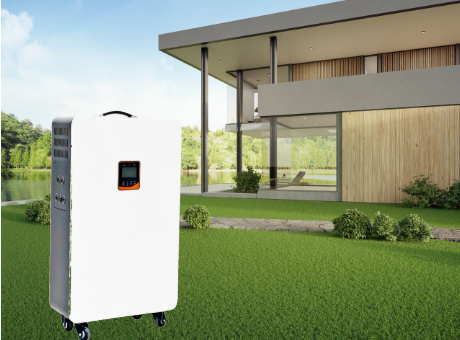

Portable Wheel-Type 51.2V LiFePO4 Battery for Residential Energy Storage
Key Specifications: 32.15kWh capacity with over 5000 cycle life
Product Overview

This portable wheel-type energy storage solution features an innovative design for easy mobility and reliable residential power storage. The system incorporates comprehensive multi-level battery protection strategies and fault isolation measures to ensure safe operation.

Primary Applications

Ideal for small commercial operations and family energy storage requirements.

Key Features
• Wheeled design for easy transportation and positioning
• Embedded wiring system ensuring safe and reliable connections
• Standard LCD display for real-time battery status monitoring
• Direct inverter communication protocol selection via display interface
• Environmentally friendly materials without heavy metals
• Extended cycle life exceeding 5,000 cycles
Technical Specifications
Parameter Specification
Model CH--GBP51.2-628L
Nominal Voltage (V) 51.2
Cell Specification 314
Nominal Capacity (Ah) 628
Operating Voltage Range (V) 44.8~58.4
Recommended Charging Voltage (V) 55.2
Recommended Discharge Cut-off Voltage (V) 48
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 200
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 890*350*1060
Weight (kg) 284/293
Manufacturing & Customization
• Factory direct supply with proprietary production base
• Flexible production capacity supporting small batch orders (MOQ 1 unit)
• Customization services available for voltage, interface, and other parameters
