26.88kWh 48V 560Ah Solar Battery Home Backup 48V Home Solar Power Storage
26.88kWh 48V 560Ah Solar Battery Home Backup 48V Home Solar Power Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$2800-3000
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Model :
26.88
Nominal Voltage (V) :
48V
Cell Specification :
280
Recommended Charging Voltage (V) :
51.75
Operating Temperature (°C) :
-30~60 (Recommended 10~35)
Storage Temperature (°C) :
-20~65 (Recommended 10~35)
Description

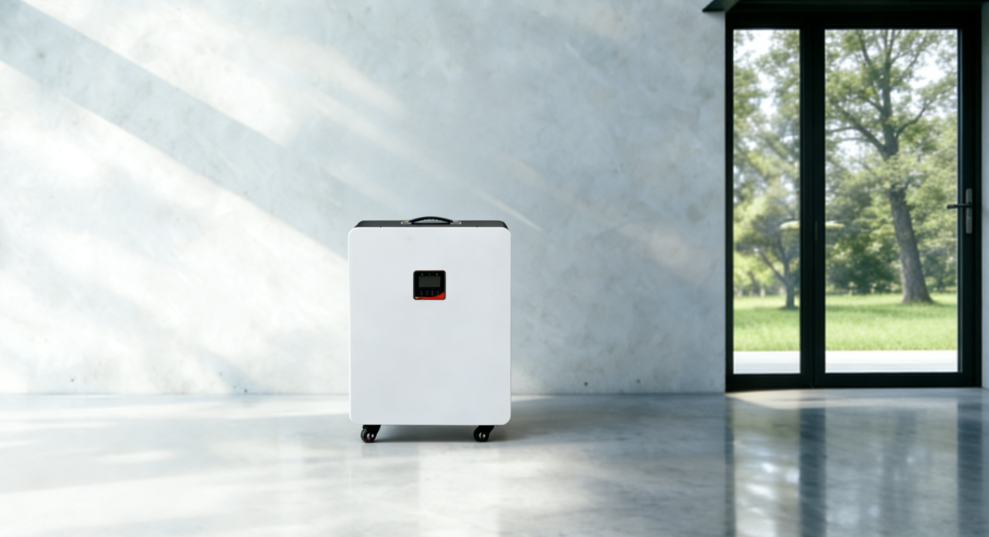

48V 26.88kWh Wheeled LiFePO4 Battery
This portable wheeled battery system features a 5000+ cycle life and is designed for residential energy storage applications. The innovative wheel design ensures easy mobility while maintaining professional performance standards.
Product Overview
Featuring an integrated wheel design for convenient mobility, this battery system includes mainstream inverter communication protocols for direct connectivity. Comprehensive multi-level protection strategies and fault isolation measures ensure safe system operation. Ideal for small commercial and residential energy storage applications.
Key Features
  • Integrated wheel design for easy transportation
  • Embedded wiring system for safe and reliable operation
  • Standard LCD display for real-time battery status monitoring
  • Direct inverter communication protocol selection via display
  • Environmentally friendly materials with no heavy metals
  • Standard cycle life exceeding 5,000 cycles

26.88kWh 48V 560Ah Solar Battery Home Backup 48V Home Solar Power Storage

Technical Specifications
Model CH--GBP48-560L
Nominal Voltage (V) 48
Cell Specification 280
Nominal Capacity (Ah) 560
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 200
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 890*350*1060
Weight (kg) 280
Manufacturing & Customization
Factory direct supply with owned production base ensures efficient order processing. Flexible production capacity supports small batch trial orders (MOQ 1 unit). Customization services available for product parameters including voltage and interface specifications per customer requirements.
