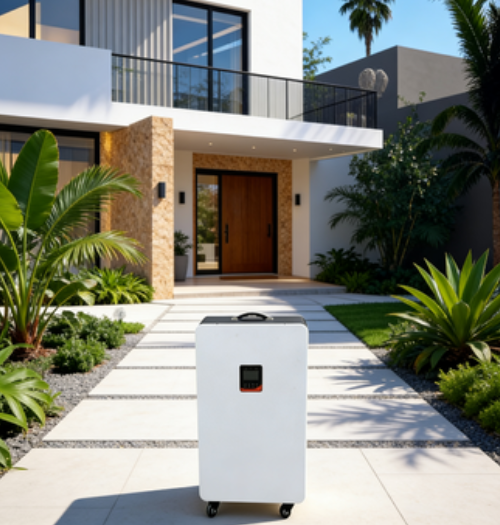

30.14kWh 48V 628Ah Residential LiFePO4 Battery Wheeled Home Battery Storage
30.14kWh 48V 628Ah Residential LiFePO4 Battery Wheeled Home Battery Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$3300-3500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cell Specification :
314
Nominal Voltage (V) :
48V
Nominal Capacity (Ah) :
628
Description
48V Wheeled LiFePO4 Battery - 30.14kWh Capacity
This 48V nominal voltage wheeled LiFePO4 battery features 30.14kWh capacity with over 5000 charge-discharge cycles, specifically designed for residential energy storage systems.
Product Overview
The battery features a wheeled design for easy mobility and aesthetic appeal. It includes mainstream market inverter protocols for direct communication and employs comprehensive multi-level protection strategies with fault isolation measures to ensure safe system operation. Widely used in small commercial and residential energy storage applications.
Key Features
  • Wheeled design for easy mobility and positioning
  • Embedded wiring system for safe and reliable operation
  • Standard LCD display for real-time battery status monitoring
  • Direct inverter communication protocol selection via display
  • Environmentally friendly materials without heavy metals
  • Standard cycle life exceeding 5,000 cycles
Manufacturing Advantages
Factory Direct Supply: Own production base ensures efficient order processing and quality control.
Flexible Production: Supports small batch trial orders with MOQ of 1 unit.
Customization Service: Product parameters including voltage and interfaces can be customized to meet specific customer requirements.
30.14kWh 48V 628Ah Residential LiFePO4 Battery Wheeled Home Battery Storage
Technical Specifications
Model CH--GBP48-628L
Nominal Voltage (V) 48
Cell Specification 314
Nominal Capacity (Ah) 628
Operating Voltage Range (V) 42~54.75
Recommended Charging Voltage (V) 51.75
Recommended Discharge Cut-off Voltage (V) 45
Standard Charge/Discharge Current (A) 100
Maximum Continuous Charge/Discharge Current (A) 200
Operating Temperature (°C) -30~60 (Recommended 10~35)
Allowable Humidity Range (%RH) <85
Storage Temperature (°C) -20~65 (Recommended 10~35)
Charging Temperature (°C) 0~55
Discharging Temperature (°C) -10~55
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life 5000+ Times at 80% DOD
Maximum Dimension (D*W*H) mm 890*350*1060
Weight (kg) 289
