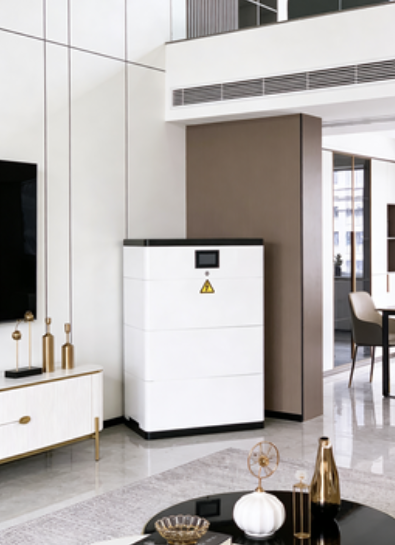

PV Energy Storage 38.4kWh Modular PV And Battery Storage Home Solar Storage
PV Energy Storage 38.4kWh Modular PV And Battery Storage Home Solar Storage
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$5450-5650
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Color :
white
Rated Voltage :
48V
Description
38.4kWh Modular Stack Lithium Iron Phosphate Battery System
Advanced home solar storage solution with flexible expansion capabilities (LFP48V/200Ah)
Product Overview
This modular stack battery system features an innovative stacked design for flexible expansion and aesthetic appeal. With one-button system startup and side-hidden wiring for customer convenience, it directly supports mainstream inverter protocols for seamless communication. Comprehensive multi-level battery protection strategies and fault isolation measures ensure safe system operation, making it ideal for small commercial and residential energy storage applications.
Key Features
  • Bilingual display (Chinese/English) with comprehensive PACK information summary
  • Direct inverter communication protocol selection via screen interface
  • Master power switch for one-touch system operation
  • Modular stack design supporting flexible battery capacity expansion
  • Multiple cluster parallel capability (up to 8 battery packs)
Manufacturing Advantages
Factory Direct Supply
Own production base with direct order processing for optimal supply efficiency
Flexible Production
Support for small batch trial orders (MOQ 1 unit)
Customization Service
Product parameters (voltage, interface) customized to customer requirements
PV Energy Storage 38.4kWh Modular PV And Battery Storage Home Solar Storage
Technical Specifications
Parameter Specification
Model CH--GLV2-P40
Battery Module Model LFP48V/200Ah
Battery Module Nominal Energy 9.6 kWh
Rated Voltage 48V
Number of Cell Modules in Single Cluster 4
Single Cluster Battery Energy 38.4 kWh
Maximum number of Clusters in Parallel 8
Operating Voltage Range 42-54.75V
Recommended Charging Voltage 51.75V
Recommended Discharge Cut-off Voltage 45V
Maximum Charge/Discharge Current 0.5C
Unit Cluster Size (D*W*H) 479*700*1408 mm
Unit Cluster Weight 420 kg
Communication Mode CAN/485/Bluetooth
Operating Temperature -30°C to 60°C (Recommended: 10°C to 35°C)
Storage Temperature -20°C to 65°C (Recommended: 10°C to 35°C)
Humidity <85% RH
Protection Level IP20
Cooling Method Natural Air Cooling
Cycle Life ≥5000 cycles
Safety Standards CE, UN38.3, MSDS
