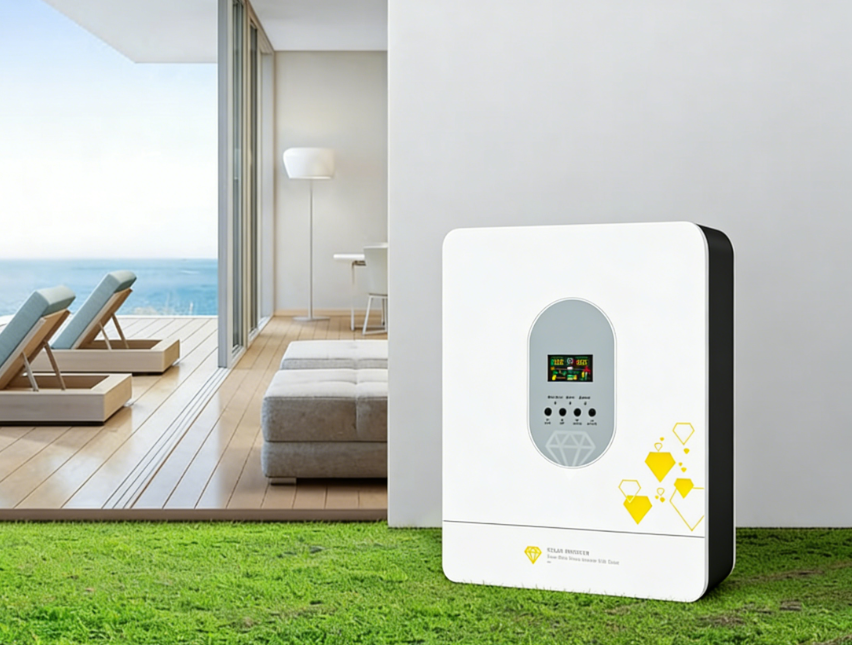

Adjustable 3kW Off Grid Solar Inverter 3000W House Solar Inverter
Adjustable 3kW Off Grid Solar Inverter 3000W House Solar Inverter
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$200-400
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Output Power (Battery Mode) :
3000W
Output Frequency :
50/60Hz±0.1%
Transfer Time :
≤10ms（UPS Mode）/≤20ms（INV Mode）
Overload Ability :
" Battery Mode：1ls@105%-150% Load 2s@150%-200% Load 400ms@200% Load "
PV Charging Mode :
MPPT
Max PV Input Voltage :
500Vdc
Description
3kW Off-Grid Solar Inverter-Pure Sine Wave Output with Wall Mounted Design for Residential Energy Storage
Product Features
  • Low No-Load Loss – Lower than high-frequency machines with the same power rate Minimizes standby power consumption, reducing energy waste and improving overall system efficiency compared to conventional high-frequency inverters.
  • Pure Sine Wave Output – Suitable for different loads Delivers clean, stable power that safely operates sensitive electronics, inductive loads such as refrigerators and air conditioners, and a wide range of household appliances.
  • Adjustable Parameters – Multiple parameters can be adjusted according to user needs Allows flexible configuration of charging voltage, battery type, and operating modes to match specific application requirements and system setups.
  • Slim Body – Convenient installation and transportation Compact and lightweight design simplifies handling during installation and makes it easy to transport, saving space and reducing installation complexity.
  • Battery Reverse Connection Protection with Fuse-Free Switch – Safer installation Prevents damage caused by incorrect battery polarity connections, ensuring a safer installation process without the need for traditional fuses.
  • Built-in MPPT Solar Controller Integrated maximum power point tracking technology optimizes solar energy harvest by continuously adjusting to the maximum power output of PV panels under varying conditions.
  • High Output Voltage Precision – Take care of your appliances Maintains stable and accurate output voltage, protecting connected appliances from voltage fluctuations and ensuring reliable long-term operation.
  • WiFi / Lithium Battery BMS Communication Support Enables remote monitoring and control via wireless networks, and allows seamless communication with lithium batteries for optimized charging performance and battery health management.
Application Scenarios
  • Small Household PV Systems Designed for residential solar installations to maximize on-site self-consumption and store excess solar energy for later use.
  • Remote Areas with Limited Grid Access Delivers reliable, stable power to household appliances and lighting in locations where grid electricity is unavailable or unreliable.
  • Emergency Backup Power Provides dependable backup power for homes and small shops, ensuring essential equipment stays running during unexpected grid outages.
Adjustable 3kW Off Grid Solar Inverter 3000W House Solar Inverter
Model CH—ED3024EMH
AC Input AC Input Voltage 220VAC (Standard) / 110VAC (Custom)
Input Voltage Range 90~280VAC±3V(Normal Mode)
170~280VAC±3V(UPS Mode)
Input Frequency 50/60Hz±5%
Rated Output Power (Battery Mode) 3000W
Output Rated Output Power (PV Mode) 3000W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time ≤10ms(UPS Mode)/≤20ms(INV Mode)
Peak Power 6000VA
Overload Ability Battery Mode:1ls@105%-150% Load
2s@150%-200% Load 400ms@200% Load
Grid-connected Operation Output Voltage
Grid-Tied Voltage Range
Grid-Tied Frequency Range
Rated Output Curren
Power Factor Range
Peak Efficiency (DC/AC)
Battery Rated Voltage 24Vdc
Constant Charging Voltage (Adjustable) 28.2Vdc
Float Charging Voltage (Adjustable) 27Vdc
Charger PV Charging Mode MPPT
Max PV Input Power 3000W
MPPT Input Voltage Range 30-500Vdc
Optimal VMP Range 300-400Vdc
Max PV Input Voltage 500Vdc
Max PV Input Current 13A
Max PV Charging Current 100A
Max AC Charging Current 60A
Max Charging Current 100A
Display LCD Interface can display operating mode/load/input/output
Interface RS232 Baud Rate 2400
Expansion Slot Communication Interface Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm
Parallel Interface / Parallel Port Not support Parallel
Ambient Temperature Operating Temperature -10°C-50°C
Operating Humidity -10°C-60°C
Storage Temperature 20%-90% Non Condensing
Noise ≤50dB
