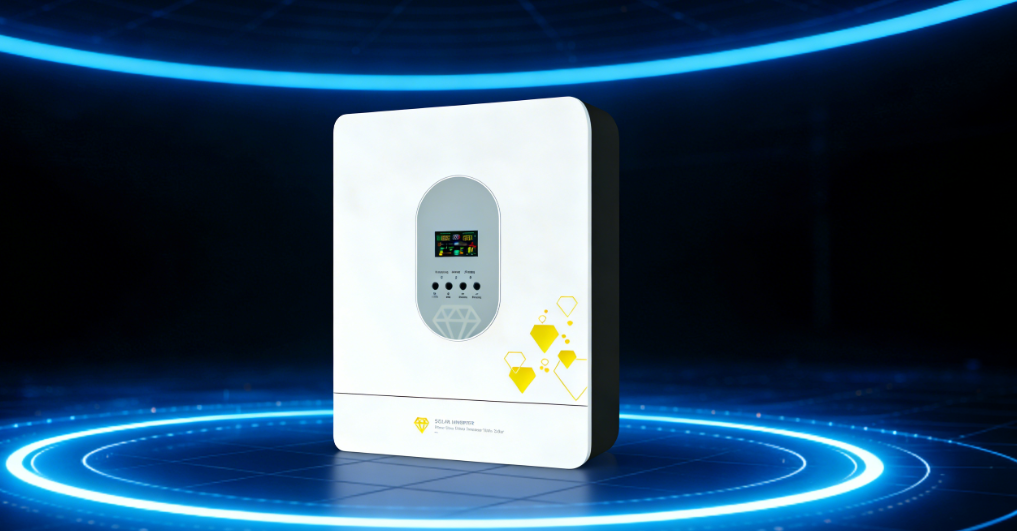

MPPT Pure Sine Wave Invertor Off Grid 3KW Wall Mounted Home Energy Storage
MPPT Pure Sine Wave Invertor Off Grid 3KW Wall Mounted Home Energy Storage
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$200-400
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Output Power (PV Mode) :
3000W
Rated Output Power (Battery Mode) :
3000W
Output Frequency :
50/60Hz±0.1%
Output Wave :
Pure Sine Wave
Float Charging Voltage (Adjustable) :
27Vdc
Constant Charging Voltage (Adjustable) :
28.2Vdc
Description
Home Energy Storage Off-grid Inverter 3kW Pure Sine Wave Wall-mounted Installation
3kW Pure Sine Wave Off-grid Solar Inverter with Wall-mounted Design
Advanced home energy storage solution featuring wall-mounted design for space efficiency and easy installation.
Product Highlights
Low no-load loss, outperforming high-frequency machines with same power rating
Pure sine wave output compatible with various load types
Customizable parameters to meet user requirements
Slim profile for convenient installation and transportation
Battery reverse connection protection with fuse switch for safer operation
Optional MPPT solar controller available
High precision output voltage protects sensitive appliances
External WiFi/BMS function support for lithium batteries
Application Scenarios
  • Small household photovoltaic systems for on-site self-consumption and surplus power storage
  • Remote areas with limited grid access, providing stable power for household appliances and lighting
  • Emergency backup power supply for households and small stores during power outages
Manufacturing Advantages
  • Factory Direct Supply - Own production base with direct order processing for optimal supply efficiency
  • Flexible Production Capacity - Support for small batch trial orders (MOQ 1 unit)
  • Customization Service - Product parameters (voltage, interface) customizable to customer requirements
MPPT Pure Sine Wave Invertor Off Grid 3KW Wall Mounted Home Energy Storage
Technical Specifications
Parameter Specification
Model CH-ED3024EMH
AC Input
AC Input Voltage 220VAC (Normal) / 110VAC (Customizable)
Input Voltage Range 90-280VAC±3V (Normal Mode)
170-280VAC±3V (UPS Mode)
Input Frequency 50/60Hz±5%
Rated Power 3000W
Output
Rated Power 3000W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time ≤10ms (UPS) / ≤20ms (INV)
Peak Power 6000VA
Overload Ability Battery Mode: 1s@105%-150% Load
2s@150%-200% Load
400ms@200% Load
Battery
Rated Voltage 24Vdc
Constant Charging Voltage (Adjustable) 28.2Vdc
Float Charging Voltage (Adjustable) 27Vdc
Charger
PV Charging Mode MPPT
Max PV Input Power 3000W
MPPT Input Voltage Range 30-500Vdc
Optimal Vmp Range 300-400Vdc
Max PV Input Voltage 500Vdc
Max PV Input Current 13A
Max PV Charging Current 100A
Max AC Charging Current 60A
Max Charging Current 100A
Display & Interface
LCD Interface Displays operating mode, load, input/output parameters
RS232 2400 Baud Rate
Expansion Slot Communication Lithium Battery BMS Communication Card, WiFi/Pitch 2.54mm
Parallel Support Not supported
Environmental Specifications
Operating Temperature -10°C to 50°C
Operating Environment Humidity 20%-90% Non-Condensing
Storage Temperature -10°C to 60°C
Noise ≤50dB
