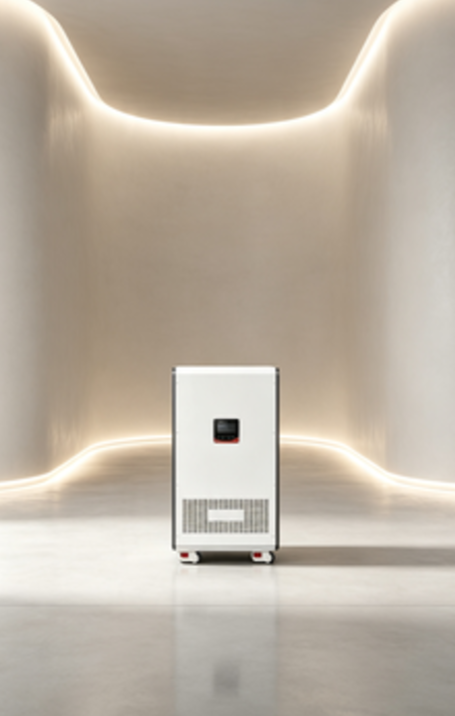

16kWh Lithium Battery with 6.6kW/10.5kW Power Output for Intelligent Solar-Storage in Residential LiFePO4 Battery Systems
16kWh Lithium Battery with 6.6kW/10.5kW Power Output for Intelligent Solar-Storage in Residential LiFePO4 Battery Systems
16kWh Lithium Battery with 6.6kW/10.5kW Power Output for Intelligent Solar-Storage in Residential LiFePO4 Battery Systems
16kWh Lithium Battery with 6.6kW/10.5kW Power Output for Intelligent Solar-Storage in Residential LiFePO4 Battery Systems
Specifications
Place of Origin :
CHIINA
Certification :
CE
Discharging Temperature (℃)        :
-10~50
Model :
6.6kW/10.5kW+16kWh
Battery Capacity (kWh) :
16KWH
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Frequency Range (Hz) :
50/60
MOQ :
1
Price :
$0-$2550
Description
6.6kW/10.5kW Power Output + 16kWh Lithium Battery, Maximize Your Household Solar Utilization
Efficient Integrated All-in-One Solution

Combining PV access, energy storage, inverter and power distribution within a single unit. Featuring space-saving integrated architecture for simple installation and maintenance. Ideal for residential, commercial and industrial energy scenarios.

Intelligent Solar-Storage & Flexible Energy Dispatch

Supports diverse operation modes. Advanced solar-storage collaborative algorithm lifts photovoltaic self-consumption ratio to maximize on-site solar utilization. Off-grid mode guarantees stable power supply for essential loads.

Intuitive Operation & Visualized Monitoring

Equipped with HD touchscreen for real-time core data viewing. Dual control channels: local touch panel and remote mobile APP access. Standardized wiring lowers on-site installation complexity.

Superior Safety, Stability & Long Service Life

Built with high-safety battery cells and multi-layer protection design. Integrated BMS intelligent management system and comprehensive safety mechanisms ensure reliable equipment operation.

Broad Compatibility & Flexible Expansion

Available in multiple power and capacity configurations. Supports seamless grid-tied/off-grid switching. Diverse communication interfaces enable remote firmware upgrade and intelligent fault diagnosis.

Technical Specifications
Model 6.6kW/10.5kW+16kWh
Inverter Output
Rated Output Power (W) 6600/10500
Max Peak Power (W) 10000/15000
Inverter & Bypass Switching Time (ms) 10 (Typical)
EU Standard Rated AC Output (VAC) 230 (Configurable:200,208,220,240)/400 (Single Phase / Three Phase)
US Standard Rated AC Output (VAC) 120/240 (Single Phase / Split Phase)
Frequency Range (Hz) 50/60
Battery
Battery Capacity (kWh) 16
Charge & Discharge Rate (C) 0.5
Charging Temperature (℃) 0~50
Discharging Temperature (℃) -10~50
PV Charging
Number of MPPT 1/2
Max PV Array Power (W) 5500/5500*2
Max PV Input Current (A) 22/22*2
Max Open Circuit Voltage (VDC) 500/500*2
MPPT Operating Range (VDC) 120~450(Single Phase)/200~650(Three Phase)
Mains Input
Input Voltage Range (VAC) Single Phase:170~280(Three Phase: 295~485)
Frequency Range (Hz) 50/60±0.3
Protection & General Specifications
Protection Level IP20
Dimensions (WDH, mm) 470*800*610
Weight (kg) 175/178
Note: 10.5kW models support optional three-phase inverter. All specifications are for reference only and subject to change without prior notice.
