Antioxidants Roller Compactor Double Roller Granulator Without Water Or Solvent
Antioxidants Roller Compactor Double Roller Granulator Without Water Or Solvent
Specifications
Advantages :
strict process requirements
Packaging Details :
exporting package
Parts :
famous brand
Certification :
CE
Features :
no waters and solvents
Model Number :
LG
Supply Ability :
1-10sets/month
Brand Name :
Shengman
Supplier :
Chinese factory
Optional device :
Micro feeder device
Core Selling Point :
Famous Brand Plc
Delivery Time :
30-90 days
Material :
SS304, 316L
Control system :
PLC
MOQ :
1set
Applicable Industry :
pharma, chemical, food industry
Price :
USD30,000-300,000
Capacity :
required by customers
Place of Origin :
changzhou
feeding type :
horizontal feeding type
Payment Terms :
T/T
Warranty :
one year
Description

Antioxidants Roller Compactor Double Roller Granulator Without Water Or Solvent

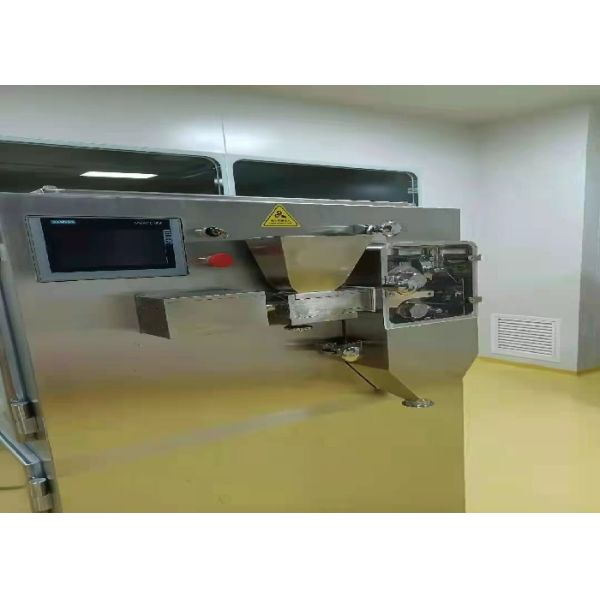

Description of Roller Compactor:

Dry Granulator is a new type of efficient granulation equipment, which is widely used in the production of heat and humidity sensitive drugs. The main body and working part are set separately. All parts in contact with materials are easy to be disassembled and cleaned. The application of a variety of advanced technologies greatly improves the scope of materials, the quality of granules and the yield of finished products. All the design and functions of the machine are compliant with cGMP and CFR21 part11.

Antioxidants Roller Compactor Double Roller Granulator Without Water Or Solvent

Model LG100 LG100E LG160 LG200 LG240 LG360

Capacity

(kg/h)

 1.5-15 12-40 50-150 100-240 160-320 360-720

Rated power

(kw)

 3.47 3.53 7.24 11.37 15.94 32.55
Roller size (D*W) 100*25 100*40 160*50 200*75 240*100 360*150


For large production scale application, we provide double-supporting roller model

Model LGS200 LGS240 LGS360 LGS500

Capacity

(kg/h)

 200-400 300-640 1200-2000 1500-3000

Rated power

(kw)
Roller size (D*W)



Key components of dry granulation machine

Feeding system: It consists of an horizontal screw feeder, which ensures continuous, stable, and uniform feeding of material into the compression roller area. It is crucial for maintaining uniform tablet density.

Compaction roller system: This is a core component, which often featuring specific patterns (such as diamond, striped) or a smooth surface, to enhance the grip and alter the tablet pressing characteristics.

Hydraulic system: It provides and precisely controls the substantial pressure applied between the two compaction rollers.

Milling (granulation) system: It consists of a crusher and a milling (granulation) device, which determines the final granule size and distribution.

Control system: Dry granulation machine utilizes PLC & touch screen control. It features precise adjustment of parameters such as feeding speed, roller pressure, roller speed (linear speed), and granulator speed.

Main adjustment parameters: Roller pressure, roller gap, feeding speed, and granulation screen mesh size. These parameters collectively determine the density, strength, output, and granularity of the granules.

Antioxidants Roller Compactor Double Roller Granulator Without Water Or Solvent

Features of roller compactor:

1. Double screw extrusion feed system, high efficiency.
2. County equation roll design for easy replacement and cleaning.
3. Motor running speed and silver gap pressure can be adjusted.
4. Select a variety of rolls according to the nature of the material.
5. Through the wall installation, reduce the floor area, improve the level of clean area.
6. The breathing plate system effectively degasses the material and improves the yield.
