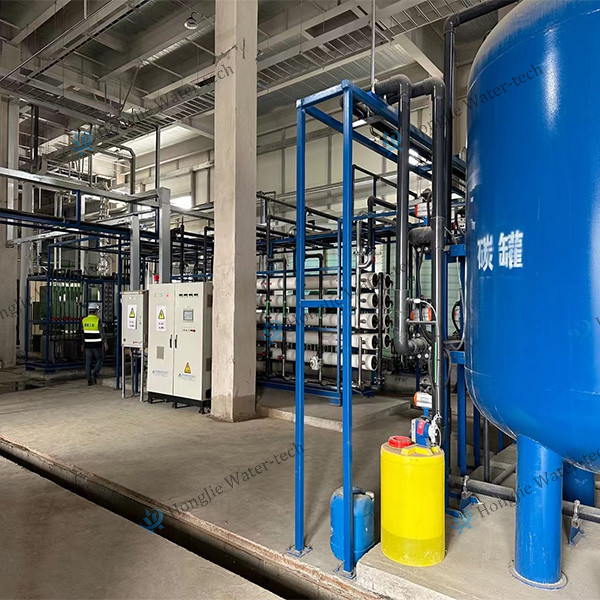

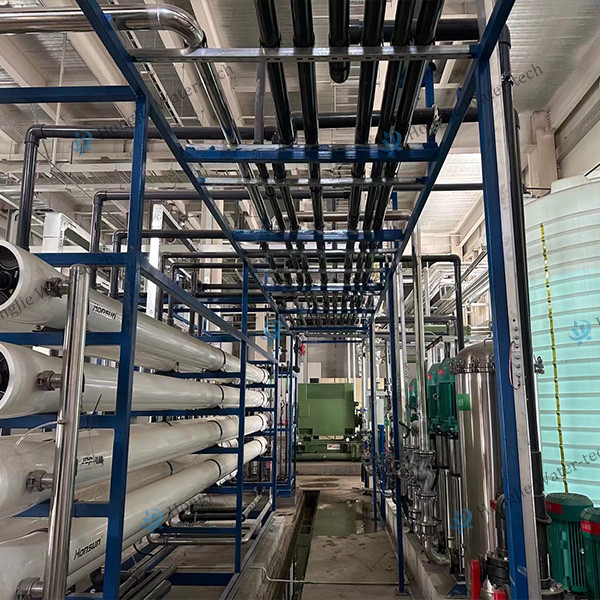

20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing
20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing
20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing
20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Guangdong,China
MOQ :
>=1sets
Price :
US$44000~US$44500
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Flow Rate :
20m³/h(Customizable)
Water Quality :
conductivity＜5us/cm
Core Process :
Double-pass Reverse Osmosis + EDI
Core Components :
RO Membrane Modules, EDI Units
Operation Mode :
Fully Automated With PLC Control
Product Features :
Stable Water Quality Output, Low Operational Costs
Industry Standard :
GMP
Electricity Supply :
380V
Description

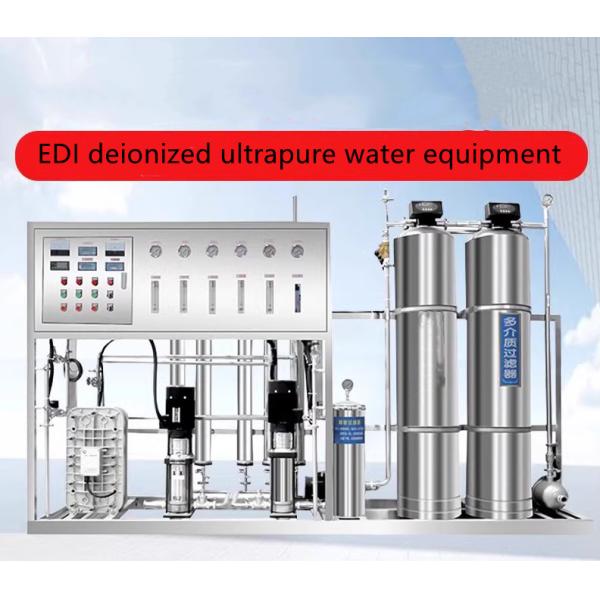

20 M³/H Integrated Reverse Osmosis-EDI ultra pure water Equipment for Biopharmaceutical Manufacturing

I. Equipment Overview

Water for biopharmaceutical production demands even stricter water quality requirements. To ensure the safety of water used in biopharmaceutical manufacturing, the entire system is constructed using all-stainless steel materials, and the final water delivery point is equipped with a sterilization device. The cleaning of production equipment and facilities consumes significant volumes of process water.

II. Process and Specifications of HJ-UPWPh20T

Raw Water → Raw Water Pressure Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Water Tank → Secondary RO → Intermediate Water Tank → Intermediate Water Pump → EDI System → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter →Pasteurization → Water Point

III.Specifications

Item Specification
Electricity Supply 380V
Produced Water Quality Resistivity ≥15-18.25 MΩ·cm
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service 2-Year Warranty For Standard Equipment

IV. Design Highlights

  • The system employs fully automatic control (with manual override capability). During operation, automatic backwash and regeneration programs can be configured.

  • All unit wiring is pre-completed at the factory, reducing installation and commissioning time.

  • Both primary and secondary Reverse Osmosis (RO) systems are equipped with recirculation pipelines. The RO unit includes chemical cleaning and sterilization/disinfection devices.

  • Piping utilizes 304/316L stainless steel materials with both sanitary and non-sanitary grade designs available.

  • The entire ultra-pure water treatment system is constructed of stainless steel, featuring smooth, flat, crevice-free surfaces for easy cleaning/sterilization, with corrosion resistance to prevent rust.

  • Directly produces sterile ultra-pure water from tap water, fully replacing distilled water and double-distilled water.

  • Automated welding of stainless steel pipes with borescope inspection.

  • Purified water storage tanks incorporate vent filters. Distribution piping is equipped with UV sterilizers and microporous filters to ensure water meets sanitary requirements.

  • Integrated control and instrumentation systems enable convenient operation and management.

  • Features online monitoring with timed printing and water quality alarm functions for abnormal parameters, safeguarding your production water supply.

20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing

V.Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
