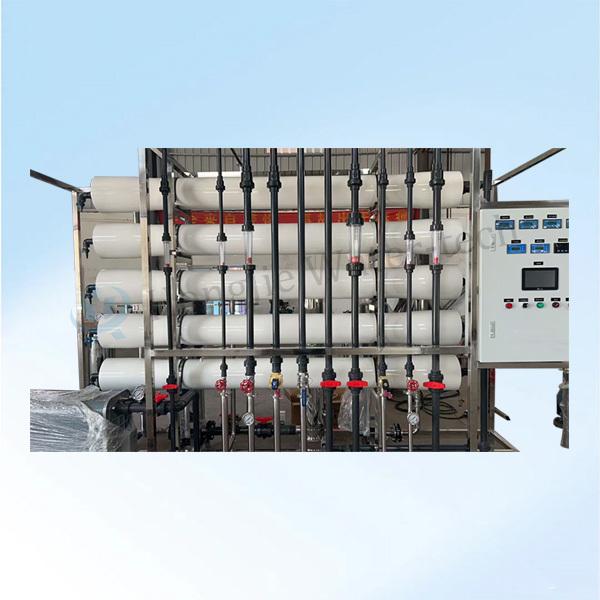

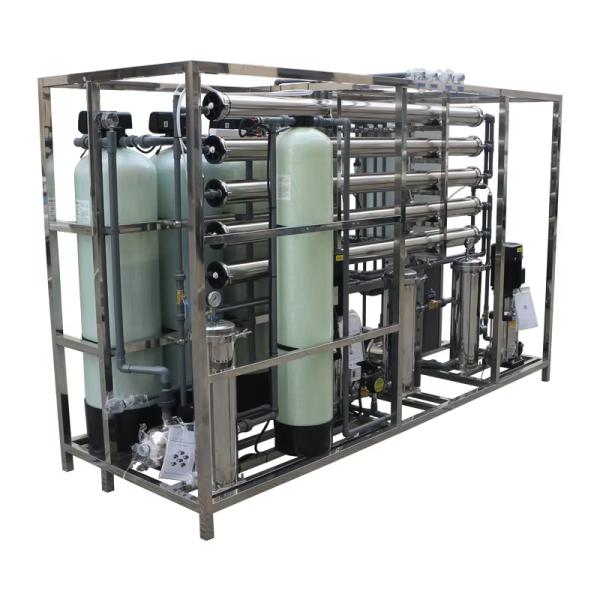

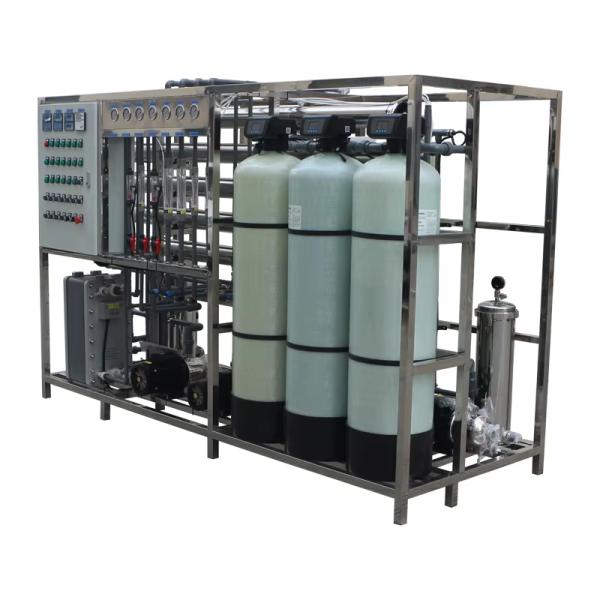

1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
1500L/H EDI Ultrapure Water System Stainless Steel 304
Specifications
Brand Name :
Hongjie
Model Number :
HJ-UP1T
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
7-10 working days
Packaging Details :
export standard wooden case
Voltage :
380V, 220V/50HZ etc; (Power supply can be Customized)
warranty :
1 Year
Control :
Automatic or manual
Desalination rate :
≥ 99%
Material :
Stainless Steel 304/Fiberglass
Capacity :
1500L/H(customized）
Usage :
Water Purification
Filter Media :
Sand+carbon+softener+RO+EDI
Description

1500L/H EDI Ultrapure Water Purification Filtration System

I.Overview

EDI (Electrodeionization) technology is a new pure and ultrapure water production technology that integrates electrodialysis and ion exchange technologies. Through the selective permeation of anions and cations by anion and cation exchange membranes and the ion exchange action of ion exchange resins, ion migration is achieved under the influence of a DC electric field, achieving deep desalination of water, with water quality exceeding 15MΩ·cm.

II.Flow Chart

Raw water→raw water tank→raw water pump→sand filter→carbon filter →water softener→salt tank→cartridge filter→high pressure pump→RO membrane→EDI Booster pump→EDI machine→pure water tank→water point

III.Parameter

Valve

Auto

Recovery rate

60-65%

Pretreatment

Quartz sand/activated carbon/water softener/Pp filter

Raw water TDS

<2000ppm

Chemical dosing system

Anti-scale dosing

system Pumps

CNP or Optional

Power supply

380V 50Hz 3phase(if special can customize)

Optional parts

UV light/ozone generator/water softened

1500L/H EDI Ultrapure Water System Stainless Steel 304

1500L/H EDI Ultrapure Water System Stainless Steel 304


1500L/H EDI Ultrapure Water System Stainless Steel 304


ldentify needs

Clarify the following issues, you can determine the right equipment for you

Water quality problems

Example 1: sediment exceeds the standard / scale / turbid water / microbial exceeds the standard/ heavy metal exceeds the standard / money Yu exceeds the standard, etc.

Water standard

Example 1:Softened water/pure water/ultra-pure water/iron and manganese removal/sediment removal/sterilisation etc.

Daily Water Consumption

Example 1:Whether there is a concentrated water consumption period/water consumption time/peak maximum water consumption/hourly average water consumption

Conclusion Example

5 tonnes per hour water softening equipment.

3 tonnes per hour reverse osmosis water purification equipment

If you can't answer the above questions clearly?

1.Daily Water Consumption:Just mail a bottle of water sample

2.Water Standard:Just tell me your industry.

3.Water Consumption:We can help you to calculate the water consumption.
