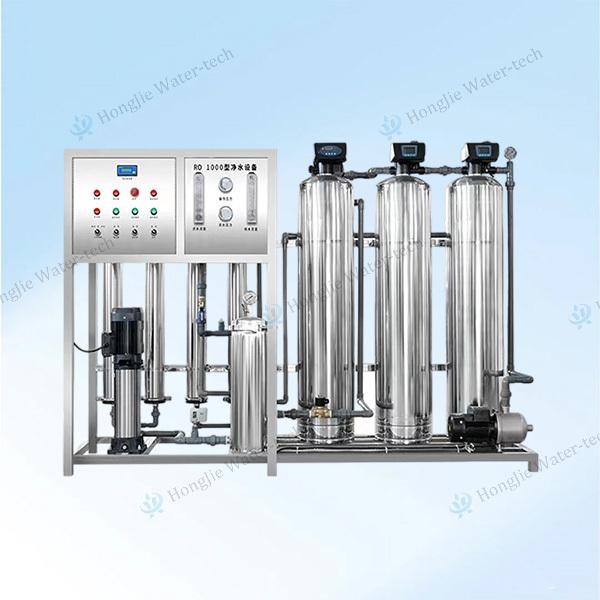

Custom Made 16M3/H Purified Water Equipment For Injection With EDI Device
Custom Made 16M3/H Purified Water Equipment For Injection With EDI Device
Custom Made 16M3/H Purified Water Equipment For Injection With EDI Device
Custom Made 16M3/H Purified Water Equipment For Injection With EDI Device
Custom Made 16M3/H Purified Water Equipment For Injection With EDI Device
Custom Made 16M3/H Purified Water Equipment For Injection With EDI Device
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
>=1sets
Price :
US$32000~US$32500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Capacity :
16m³/h
Water Quality :
Electrical Conductivity ≤1.3 μS/cm
Core Technology :
Double-stage Reverse Osmosis (RO) + Electrodeionization (EDI)
Key Components :
RO Membrane Modules, EDI Modules
Operation Mode :
Fully Automated (PLC Control)
Features :
Stable Water Quality, Low Operation Cost
After-sales Service :
2-Year Warranty For Standard Equipment
Electricity Supply :
380V
TOC :
≤0.50 mg/L (500 ppb)
pH value :
5.0–7.0
Description

Excellent Performance Custom-made 16M³/H Purified Water Equipment for Injection with EDI device

Ⅰ. Equipment Introduction

Water for Injection (WFI) complies with the specifications defined in the Chinese Pharmacopoeia. It is produced by distilling distilled water or deionized water, hence also known as "double-distilled water". To effectively control microbial contamination and endotoxin levels, the design and manufacture of purified water and WFI systems feature two key innovations:

  • Increasing adoption of disinfection/sterilization facilities within the system;
  • Evolution of pipeline distribution from traditional supply pipes to circular loop pipelines, minimizing stagnation risks.

Ⅱ.Key Advantages

  • The WFI preparation, storage, and distribution system is engineered to prevent microbial growth and contamination.
  • Tanks and pipelines are constructed from non-toxic, corrosion-resistant materials, with designs free of dead ends and blind pipes to ensure hygiene.
  • Regular cleaning and sterilization cycles are specified for tanks and pipelines.
  • The WFI storage tank's vent is equipped with a hydrophobic sterile filter to prevent fiber shedding.
  • Storage options include thermal insulation at ≥80℃, thermal circulation at ≥70℃, or cold storage at ≤4℃.

Ⅲ. Process Flow

  1. Raw Water → Raw Water Pressure Pump → Multi-media Filter → Activated Carbon Filter → Water Softener → Precision Filter → 1st Stage RO → pH Adjustment → Intermediate Water Tank → 2nd Stage RO → Intermediate Water Tank → Intermediate Water Pump → EDI System → Purified Water Tank → Pure Water Pump → UV Sterilizer → Micro-porous Filter →Pasteurization → Water Use Points

IV.Specifications

Item Specification
Electricity Supply 380V
Produced Water Quality Conductivity < ≤1.3 μS/cm
Core Technology Double-pass Reverse Osmosis + EDI
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service 2-Year Warranty For Standard Equipment

V. Design Features (Marketing Highlights)

  1. Fully Automated Control (with manual override option) enables scheduled automatic backwashing and regeneration, reducing labor costs.
  2. Pre-assembled unit wiring in the factory minimizes on-site installation and debugging time.
  3. 1st and 2nd stage RO systems feature reflux pipelines, complemented by chemical cleaning and disinfection devices for prolonged membrane life.
  4. Pipeline materials: 304/316L stainless steel, with hygienic and non-hygienic grade designs to meet diverse industry needs.
  5. The ultra-pure water system is fully constructed from stainless steel, ensuring smooth surfaces, no dead angles, easy cleaning/sterilization, and corrosion resistance—eliminating rust risks.
  6. Direct conversion of tap water to sterile ultra-pure water, replacing traditional distilled and double-distilled water for cost efficiency.
  7. Automated stainless steel pipe welding with endoscopic inspection for leak-proof, high-integrity joints.
  8. Purified water storage tanks with breathing filters, and delivery pipelines equipped with UV sterilizers and micro-porous filters to guarantee hygienic standards.
  9. Integrated control and instrument systems for intuitive operation and management.
  10. Real-time online monitoring, timed printing, and water quality alarm functions provide full-process safety for your production water.

VI. Design Standards and Basis

  1. Tailored Solutions based on detailed water quality reports provided by clients.
  2. YY/T 1244-2014 Purified Water for In Vitro Diagnostic Reagents
  3. JB/T 2932-1999 Technical Conditions for Water Treatment Equipment
  4. CJ/T119-2000 Standard for Reverse Osmosis Water Treatment Equipment
  5. JB/T20093-2007 Pharmaceutical Machinery Industry Standard
  6. GB/T 12771-2008 Stainless Steel Welded Tubes for Fluid Transportation

Quality Standards:
  • Microbial count ≤50CFU/100ml
  • Total Organic Carbon (TOC) ≤500μg/L
  • Electrical conductivity ≤1μS/cm (Resistivity ≥1.0MΩ·cm)

VI.Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
