New Energy Ultra Pure Water Equipment Large Water Purifier System 20000L-500000L
New Energy Ultra Pure Water Equipment Large Water Purifier System 20000L-500000L
New Energy Ultra Pure Water Equipment Large Water Purifier System 20000L-500000L
New Energy Ultra Pure Water Equipment Large Water Purifier System 20000L-500000L
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Guangdong,China
MOQ :
>=1sets
Price :
negotiation
Payment Terms :
L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Flow Rate :
20000L-500000L
Product name :
Ultra Pure Water Treatment System
Core Process :
Double-pass Reverse Osmosis + EDI + Polishing Resin
Filter Media :
Sand+carbon+RO
Material :
Stainless steel
RO membrane :
DOW Membrane USA Original Vontron
Description

I. Equipment Overview

Ultrapure water systems are crucial for new materials and new energy applications, particularly in industries like microelectronics and pharmaceuticals, where high purity is essential. These systems utilize advanced purification technologies to remove impurities like ions, organic compounds, and microorganisms, producing water with extremely low levels of contaminants.

New materials refer to some materials with superior performance that have been newly developed or are under research and development. Ultra-pure water equipment for new material processing is precisely applied to meet the water demand of this industry and ensure the effluent quality of the equipment; ultra-pure water used in the battery industry includes pure water for storage battery production, pure water for lithium battery production, pure water for solar cell production, and pure water for storage battery grids. The preparation of electrolyte in batteries has strict requirements for pure water, usually requiring the conductivity of water to be above 0.1 μS/cm (resistivity above 10 megohms).

II. Process Flow Options

Raw Water → Booster Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Cartridge Filter → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage RO → Purified Water Tank → EDI System → Ultra-Pure Water Tank → Polishing Unit → Point of Use

III. Hightlihgts of the process

  • Dual-Stage RO: Ensures >99% rejection of ions and organics
  • EDI Technology: Continuous electro-deionization for consistent ultrapure water quality
  • Polishing Units: Final purification to meet semiconductor-grade standards
  • Modular Design: Easy to expand or upgrade as your needs evolve

IV.Parameters

Item Specification
Electricity Supply 380V
Productivity 20000L-500000L
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service 2-Year Warranty For Standard Equipment

V. Key Advantages

  • Fully Automated Operation: Seamless switch between automatic and manual modes, with programmable backwash and regeneration cycles for hassle-free maintenance
  • Plug-and-Play Design: Factory-preassembled wiring minimizes on-site installation time by up to 30%
  • RO System Longevity: Recirculation pipelines and chemical cleaning modules ensure optimal membrane performance
  • Corrosion-Resistant Infrastructure: UPVC piping ensures low contamination risk and long-term durability
  • Integrated Intelligence: Centralized control panel with real-time instrumentation for intuitive management
  • RO Membrane Protection: Automatic startup and timed cleaning cycles extend membrane lifespan by 70%
  • Adaptive Maintenance: Smart prompts for consumable replacement based on actual water quality data, not fixed schedules
  • Intelligent Safety Features: Auto-shutdown for raw water shortages and smart tank level control to optimize productivity

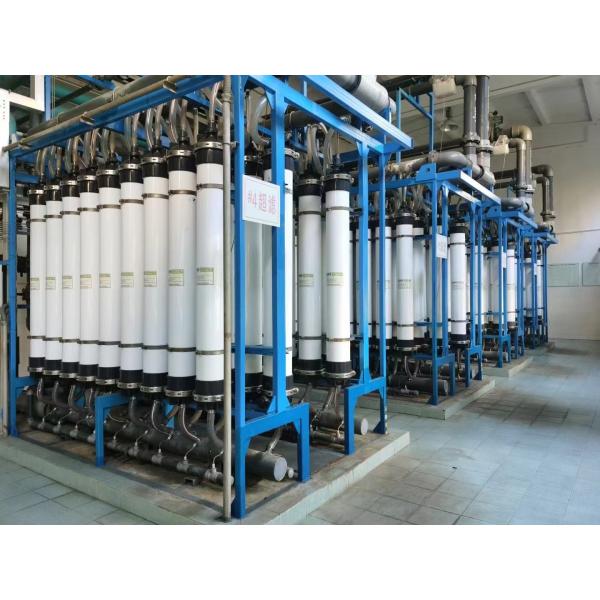

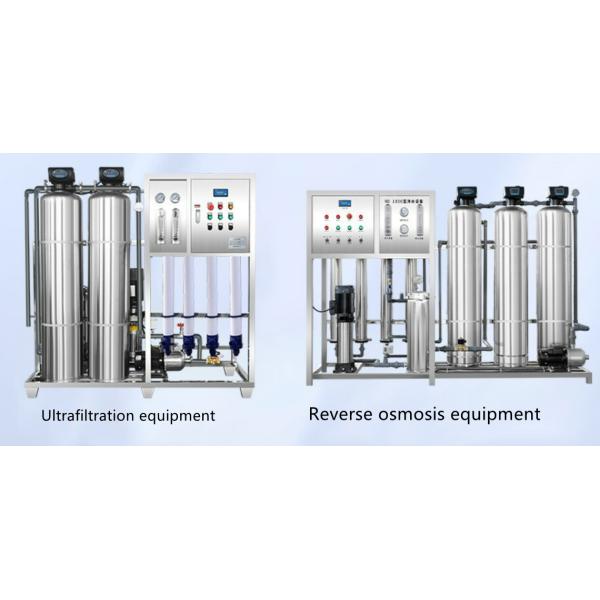

Product & Project Photo

New Energy Ultra Pure Water Equipment Large Water Purifier System 20000L-500000L

New Energy Ultra Pure Water Equipment Large Water Purifier System 20000L-500000L
