Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System
Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System
Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System
Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Guangdong,China
MOQ :
>=1sets
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
10-15working days
Packaging Details :
export standard wooden case
Product name :
Ultra-pure Water Systems
Ultrafiltration plant :
30TH
Core Process :
Double-pass Reverse Osmosis + EDI + Polishing Resin
Operation Mode :
Fully Automatic
Application :
Filtration
Processing :
Pre-treatment+uf Filter
Description

I. Product Introduction

Ultra-pure water equipment is a specialized device that employs multi-stage precision treatment processes to remove nearly all impurities from water, including ions, organic compounds, colloids, microorganisms, particles, etc., thereby producing ultra-pure water with extremely high resistivity (typically ≥18 MΩ·cm at 25°C). Its core objective is to meet the requirements of industries and fields that are extremely sensitive to water quality, such as semiconductors, pharmaceuticals, precision electronics, and high-end scientific research.

II. Design Standards & Compliance

  1. Custom Engineering: Based on your detailed water analysis report.
  2. Industry Certifications:
    • NB/T 10790-2021 (Technical Specifications for Water Treatment Equipment)
    • GB/T 19249-2017 (Reverse Osmosis Water Treatment Equipment)
    • IEC 439-1 (Low Voltage Switchgear and Controlgear Assemblies)
    • GB 6682-2008 (Laboratory Ultra-Pure Water Standards)
    • GB/T 11446.1-2013 (Electronic Grade Water Specifications)

III. Process Flow Diagram

Standard Configuration:
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use

Process Highlights:

  • Multi-Stage Pretreatment: Removes particles, organics, and chlorine to protect RO membranes.
  • Dual RO System: Achieves salt rejection rate for consistent high-purity water.
  • EDI Technology: Continuous electro-deionization eliminates the need for chemical regeneration.
  • Polishing Resin: Final purification stage for ultralow TOC and ionic contaminants

    Specifications

    Item Specification
    Electricity Supply 380V
    Productivity 30TH
    Core Technology Double-stage Reverse Osmosis (RO)
    Key Components RO Membrane Modules
    Operation Mode Full Automatic (PLC-controlled)
    Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
    After-Sales Service 2-Year Warranty For Standard Equipment

IV. Design Advantages

  1. Fully Automated Control:
    • Automatic backwash and regeneration cycles.
    • Manual override option for maintenance.
  2. Factory-Integrated Wiring:
    • Pre-wired components reduce on-site installation time .
  3. Advanced Maintenance Features:
    • RO chemical cleaning system extends membrane life.
    • Recirculation loops ensure water quality stability.
  4. Premium Materials:
    • 304 stainless steel and UPVC piping for corrosion resistance.
  5. Intuitive Operation:
    • Integrated control panel with real-time monitoring.
    • Remote access option for troubleshooting.
  6. Low Maintenance:
    • Durable components designed for continuous operation.

Photoes:

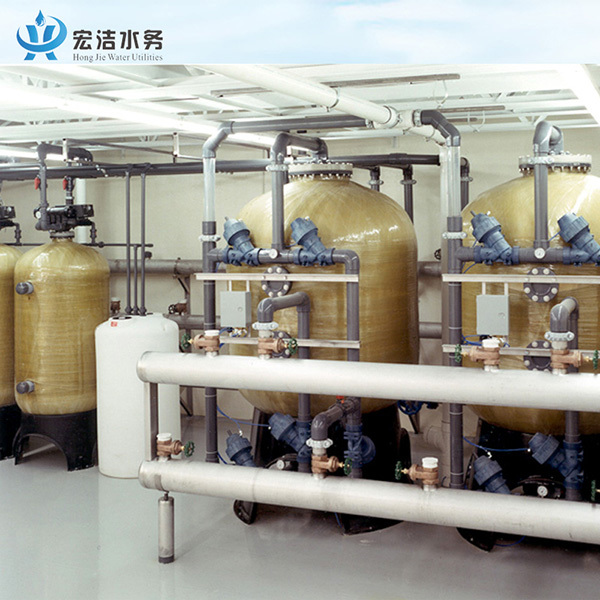

30T ion exchange equipment

Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System

Large Scale Ultra Pure Water Equipment 30T Per Hour Ultrafiltration System

Contact us today to discuss your specific requirements and receive a customized solution proposal.

Hongjie Water Technology - Your Trusted Partner for Semiconductor Ultra-Pure Water Solutions
