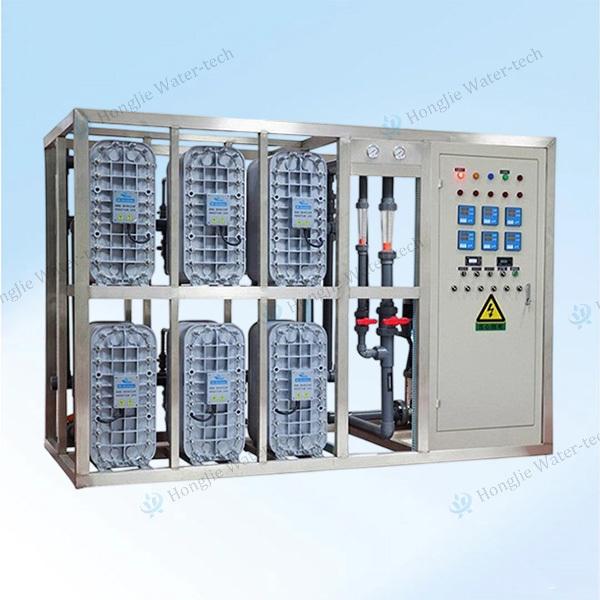

Turnkey Project 80T/H Ultra Pure Water Equipment For Display Panel Cleaning
Turnkey Project 80T/H Ultra Pure Water Equipment For Display Panel Cleaning
Turnkey Project 80T/H Ultra Pure Water Equipment For Display Panel Cleaning
Turnkey Project 80T/H Ultra Pure Water Equipment For Display Panel Cleaning
Turnkey Project 80T/H Ultra Pure Water Equipment For Display Panel Cleaning
Turnkey Project 80T/H Ultra Pure Water Equipment For Display Panel Cleaning
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
>=1sets
Price :
US$176200~US$181500
Payment Terms :
T/T
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Flow Rate :
80T/H
Water Quality :
Resistivity ≥5-18 .25MΩ·cm
Core Process :
Double-pass Reverse Osmosis + EDI + Polishing Resin
Core Components :
RO Membrane Modules, EDI Units
Operation Mode :
Fully automated with PLC control
Product Features :
Stable water quality output, low operational costs
After-Sales Service :
24/7 technical support, lifetime maintenance
Power Supply :
380V
TOC :
≤1 ppb
Particulate matter :
≤0.05μm (＜1/mL)
Description

Turnkey Project Model 80T/H High - Purity Water Systems For Display Panel Cleaning

I. Equipment Overview

Photoelectric material production, processing, and cleaning; LCD liquid crystal displays, PDP plasma displays, high-quality lamp cathodes, the microelectronics industry, FPC/PCB circuit boards, and large-scale and ultra-large-scale integrated circuits all require substantial amounts of high-purity water and ultra-pure water to clean semi-finished and finished products. The higher the integration level of integrated circuits, the more stringent the requirements for water quality. This also imposes stricter demands on the simplicity, automation level, production continuity, and sustainability of ultra-pure water treatment processes and equipment.

II. Process Flow

Raw Water → Booster Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Cartridge Filter → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage RO → Purified Water Tank → EDI System → Ultra-Pure Water Tank → Polishing Unit → Point of Use

III. Parameters

Item Specification
Electricity Supply 380V
Produced Water Quality Resistivity ≥15-18.25 MΩ·cm
Core Technology Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Product Features Stable Water Quality,Low Operation Cost,Reliable Performance
After-Sales Service 2-Year Warranty For Standard Equipment

IV.Highlights of process

  • Dual-Stage RO: Ensures >99% rejection of ions and organics
  • EDI Technology: Continuous electro-deionization for consistent ultrapure water quality
  • Polishing Units: Final purification to meet semiconductor-grade standards
  • Modular Design: Easy to expand or upgrade as your needs evolve

RO Membrane Photo:

Turnkey Project 80T/H Ultra Pure Water Equipment For Display Panel Cleaning

EDI Photo:

Turnkey Project 80T/H Ultra Pure Water Equipment For Display Panel Cleaning

V. Key Advantages

  • Fully Automated Operation: Seamless switch between automatic and manual modes, with programmable backwash and regeneration cycles for hassle-free maintenance
  • Plug-and-Play Design: Factory-preassembled wiring minimizes on-site installation time by up to 30%
  • RO System Longevity: Recirculation pipelines and chemical cleaning modules ensure optimal membrane performance
  • Corrosion-Resistant Infrastructure: UPVC piping ensures low contamination risk and long-term durability
  • Integrated Intelligence: Centralized control panel with real-time instrumentation for intuitive management
  • RO Membrane Protection: Automatic startup and timed cleaning cycles extend membrane lifespan by 70%
  • Adaptive Maintenance: Smart prompts for consumable replacement based on actual water quality data, not fixed schedules
  • Intelligent Safety Features: Auto-shutdown for raw water shortages and smart tank level control to optimize productivity

VI. Design Standards & Compliance

  • Custom Engineering: Based on your detailed water quality analysis
  • Industry Certifications:
    • Water Treatment Equipment Specifications (JB/T 2932-1999)
    • Reverse Osmosis Equipment Standards (CJ/T119-2000)
    • Low-Voltage Switchgear Standards (IEC439-1)
    • Laboratory Ultra-Pure Water Standards (GB6682-2008)
    • Electronic Grade Water Specifications (GB/T11446.1-1997)

VII.Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
