Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
>=1sets
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
7-12working days
Packaging Details :
export standard wooden case
Flow Rate :
500l/Hour
Processing Type :
Reverse Osmosis
Type :
Reverse Osmosis Filtration
Core Components :
Gearbox, Pressure vessel, Pump
Function :
Water Purification Plant
Material :
SUS304/316
After-Sales Service :
24/7 Technical Support, 2-Year Maintenance
Industry Standard :
GMP
Description

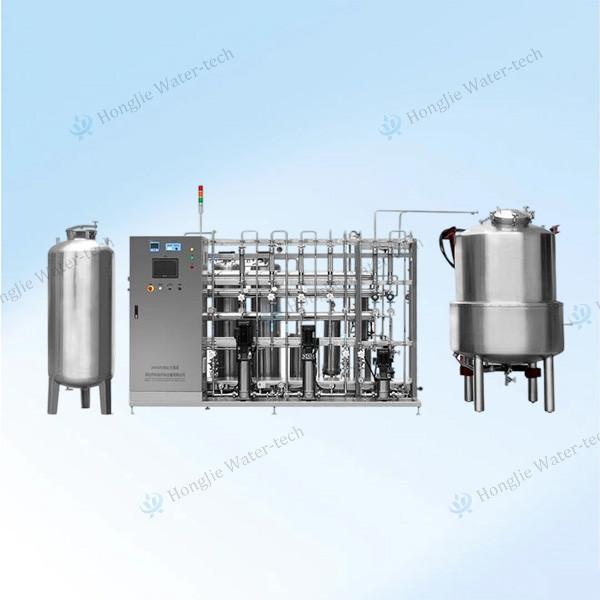

I. Equipment Overview

In the biopharmaceutical sector, water quality is paramount. Our GMP medical purified water equipment rises to the challenge, constructed entirely from stainless steel and equipped with cutting - edge sterilization devices at the final water outlets. This ensures the utmost safety for every drop of water used in your critical biopharmaceutical processes.For the rigorous cleaning of production equipment and facilities, which demand substantial volumes of process water, our system is a reliable partner.

II. Process Flow


Raw Water → Raw Water Pressure Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Water Tank → Secondary RO → Intermediate Water Tank → Intermediate Water Pump → EDI System → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter →Pasteurization → Water Point


III. Design Highlights

  • Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
  • Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
  • RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
  • Sanitary Materials: 304/316L stainless steel piping in both sanitary and non-sanitary designs, with automatic welding and endoscopic inspection for flawless hygiene.
  • Superior Construction: The entire ultra - pure water treatment system, made of stainless steel, features smooth surfaces, eliminating dead corner for easy cleaning, sterilization, and corrosion resistance.
  • Cost - Saving Replacement: Convert ordinary tap water into sterile ultra - pure water, replacing traditional distilled and double - distilled water, thus reducing costs and increasing convenience.
  • Stainless Steel Pipe Automatic Welding & Endoscopic Inspection - Elevate Your Production with Precision and Efficiency.
  • Hygiene Guaranteed: Purified water storage tanks with breathing filters, along with UV sterilizers and microporous filters in the pipelines, ensure water quality remains pristine.
  • User - Friendly Operation: Integrated control and instrumentation systems make operation and management intuitive and straightforward.
  • Peace of Mind: Our online monitoring, timed printing, and water quality over - limit alarm functions provide round - the - clock protection for your production water, ensuring uninterrupted and compliant operations.


IV. Design Standards and Basis

  1. Tailored solutions based on the detailed water quality report provided by users.
  2. YY/T 1244-2014: Purified Water for In Vitro Diagnostic Reagents
  3. NB/T 10790-2021: Technical Specifications for Water Treatment Equipment
  4. GB/T 19249-2017: Reverse Osmosis Water Treatment Equipment Standards
  5. JB/T 20093-2015: Pharmaceutical Machinery Industry Standards
  6. GB/T 12771-2019: Stainless Steel Welded Steel Pipes for Fluid Transportation
    Standards: Microorganisms ≤50CFU/100ml; TOC ≤500μg/L; Conductivity ≤1μS/cm (Resistivity ≥1.0MΩ·cm)


VI.Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )


Elevate your biopharmaceutical production with our state - of - the - art GMP medical purified water equipment. Contact Hongjie Water Affairs today and experience the difference of a solution designed for excellence.

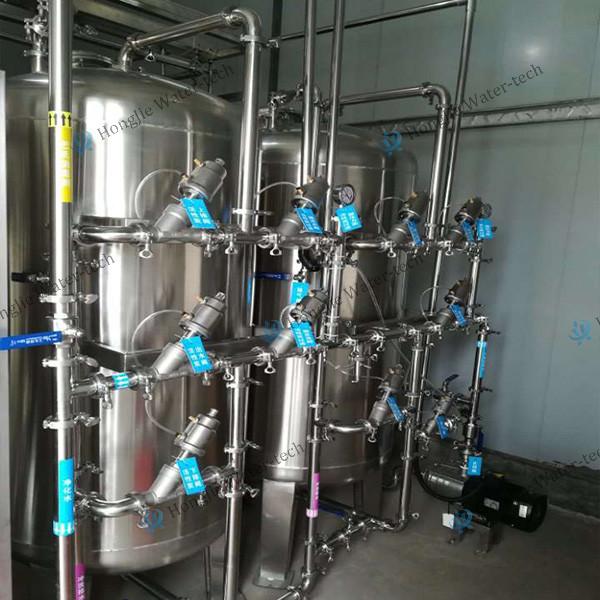

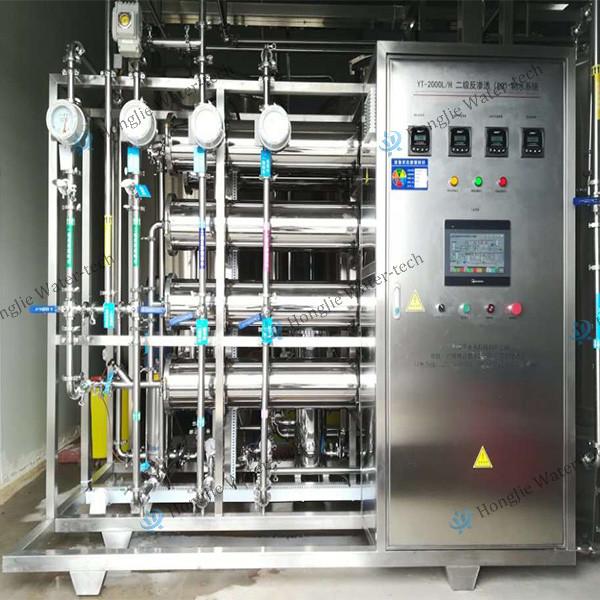

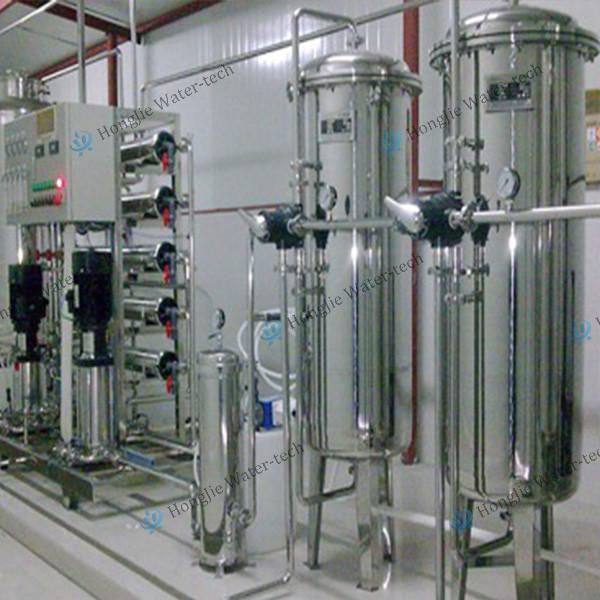

Photo:
