Stainless Steel Tailor - made 15m³/h Ultra - pure water Systems for the chemical and cosmetics industry

I. Equipment Introduction

II. Design Standards and Basis

1. “Tailor - made” according to the detailed water quality report provided by the user.
2. Technical Conditions for Water Treatment Equipment
3. Standards for Reverse Osmosis Water Treatment Equipment
4. Low - voltage Switchgear and Controlgear Assemblies
5. Welded Stainless Steel Pipes for Fluid Transport(SUS304/316L)

III. Process Flow

Raw water - Raw water booster pump - Multi - media filter - Activated carbon filter - Water softener - Precision filter - Primary reverse osmosis - PH adjustment - Intermediate water tank - Secondary reverse osmosis - Purified water tank - Pure water pump - EDI system - Ultra - pure water tank - Pure water pump - Water use point

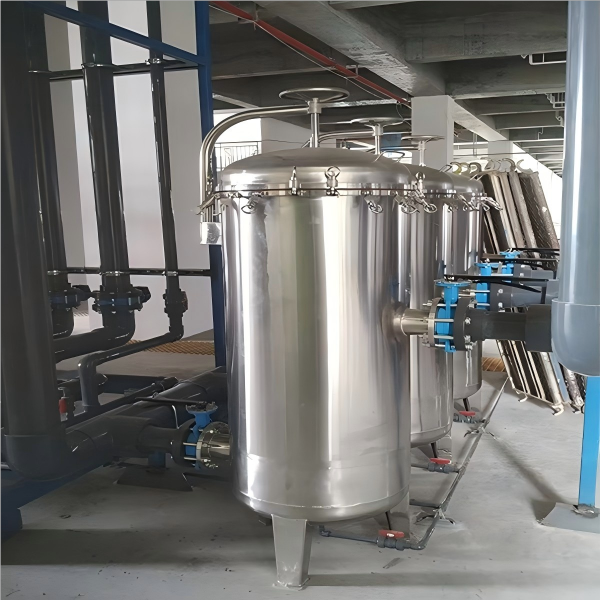

Photo:

IV. Design Features

1. Fully Automated Control: Switch between automatic (with preset backwash/regeneration cycles) and manual modes for flexibility.
2. Factory-Integrated Wiring: Reduces on-site installation and debugging time by completing all unit connections at our facility.
3. RO System Protection: Built-in recirculation pipelines, chemical cleaning, and disinfection systems for prolonged efficiency.
4. Pipeline System Configuration:Adopts UPVC pipes, combining durability and economy to build a reliable fluid transmission solution.
5. Integrated Control System:Achieves intelligent operation and management through integrated control and instrumentation systems, optimizing workflow efficiency.
6. RO Membrane Protection System:Equipped with startup cleaning and regular cleaning functions to extend membrane element service life and reduce replacement costs.
7. Water Resource Recovery Rate:Innovative process design significantly improves equipment recovery rate, enabling up to 70% water recycling and practicing green energy conservation.
8. Intelligent Consumable Management:Features automatic warning for consumable replacement, with cycles dynamically adjusted based on water quality and pressure to adapt to regional water quality differences—smart design at its best.
9. Intelligent Protection System:Includes automatic shutdown protection for source water shortages, as well as intelligent functions for automatic water production when the tank is low and automatic shutdown when full, ensuring stable and worry-free operation.

VI.Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
