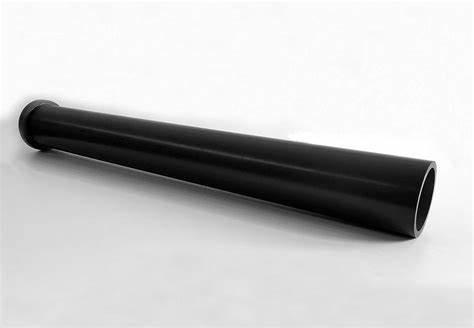

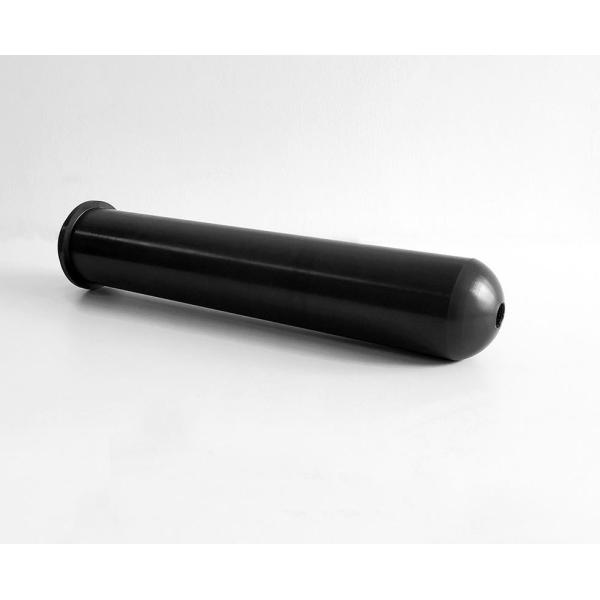

Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting
Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting
Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting
Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
Silicon Nitride
Composition:SiC :
＞85%
Color :
Black
Density :
3.20-3.26g/cm3
Max. Service Temp :
1450℃
Flexural Strength :
250MPa
Sample :
Customizable
Chemical Stability :
High
Apparent Porosity :
0-0.1%
Elastic Modulus :
300-320GPa
Compression Strength :
>1500MPa
Vickers Hardness(HV0.5) :
15-16GPa
Thermal Conductivity :
20-25W/(m.k)
Specific Resistivity :
10^14Ω·cm
Description

Silicon Nitride Riser Tube - High-Temperature Resistant Ceramic Tube for Aluminum Casting

Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting

Silicon Nitride Riser Tube High Temperature Resistant Ceramic Tube For Aluminum Casting

Description:

The silicon nitride riser tube is manufactured through isostatic pressing and gas pressure sintering processes, offering exceptional density and high-temperature mechanical strength. Designed specifically for aluminum casting, its unique material properties extend service life by over 10 times compared to conventional tubes, while minimizing air leakage and slagging. This results in higher-quality castings and reduced operational costs.

Typical application:

1. Low-Pressure/Gravity Casting: Aluminum wheels, engine blocks

2. Precision Casting: Aerospace components, heat sinks

3. Continuous Casting: Slabs, rods

Feature:

1. Excellent Thermal Shock Resistance

2. High-Temperature Resistance & Low Thermal Expansion

3. Corrosion Resistance & Non-Wetting

4. Long Lifespan & Easy Maintenance

The physical properties of Silicon Nitride Riser Tube:

Item Unit Result
Density g/cm3 3.20-3.26
Apparent Porosity % 0-0.1
Elastic Modulus GPa 300-320
Compression Strength MPa >1500
Vickers Hardness(HV0.5) GPa 15-16
Fracture Toughness MPa.m1/2 >0.8
Bending Strength MPa >700
Poisson's Ratio - 0.25
Linear Expansion Coefficient x10-6/℃ 3.1-3.3
Weibull Modulus - 11-13
Thermal Conductivity W/(m.k) 20-25
Specific Resistivity Ω 1014

Available product sizes:

Size Max. Diameter Thickness Max. Length
Unit(mm) 430 10-15 1350
