Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
Silicon Nitride
Composition:SiC :
＞85%
Color :
Black
Density :
3.20-3.26g/cm3
Max. Service Temp :
1450℃
Flexural Strength :
250MPa
Sample :
Customizable
Chemical Stability :
High
Apparent Porosity :
0-0.1%
Elastic Modulus :
300-320GPa
Compression Strength :
>1500MPa
Vickers Hardness(HV0.5) :
15-16GPa
Thermal Conductivity :
20-25W/(m.k)
Specific Resistivity :
10^14Ω·cm
Description

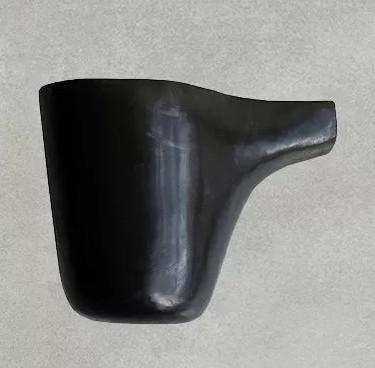

Silicon Nitride (Si3N4) Pouring Spoon & Crucible

High-performance silicon nitride ceramic materials developed for the aluminum industry has significantly improved thermal and mechanical properties than similar products. On this basis, the "L-shaped high thermal conductivity submerged heating "Appliance" will bring revolutionary progress to aluminum industrial equipment.

The domestically pioneered grouting-formed silicon nitride pouring spoon and crucible maximizes the thermal shock resistance and non-stick aluminum properties of silicon nitride materials, and should be the ultimate solution for aluminum industry pouring spoons and crucibles.

Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry

Advantage:

Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry

Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry

  • Compared with the other material crucible, the service life is greatly extended.

Silicon Nitride Related Data

Main component 99%Al2O3 S-SiC ZrO2 Si3N4
Physical
Property		 Density g/cm3 3.9 3.1 6 3.2
Water Absorption % 0 0.1 0 0.1
Sinter Temperature °C 1700 2200 1500 1800
Mechanical
Property		 Rockwell Hardness HV 1700 2200 1300 1400
Bend Strength kgf/mm2 3500 4000 9000 7000
Compression Intensity Kgf/mm2 30000 20000 20000 23000
Thermal
Property		 Maximum working
temperature		 °C 1500 1600 1300 1400
thermal expansion
coefficient
0-1000°C		 /°C 8.0*10-6 4.1*10-6(0-500°C) 9.5*10-6 2.0*10-6(0-500°C)
5.2*10-6(500-1000°C) 4.0*10-6(500-1000°C)
Thermal Shock resistance T(°C) 200 250 300 400-500
Thermal Conductivity W/m.k(25°C 31 100 3 25
300°C) 16 100 3 25
Electrical
Property		 Resisting rate of Volume ◎.cm 　 　 　 　
20°C >1012 106-108 >1010 >1011
100°C 1012-1013 – – >1011
300°C >1012 – – >1011
Insulation Breakdown
Intensity		 KV/mm 18 semiconductor 9 17.7
Dielectric Constant (1 MHz) (E) 10 – 29 7
Dielectric Dissipation (tg o) 0.4*10-3 – – –

Silicon Nitride Si3N4 Pouring Spoon And Crucible For Aluminum Industry
