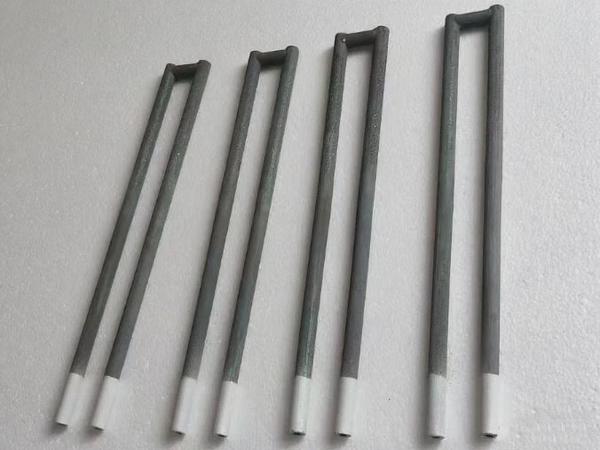

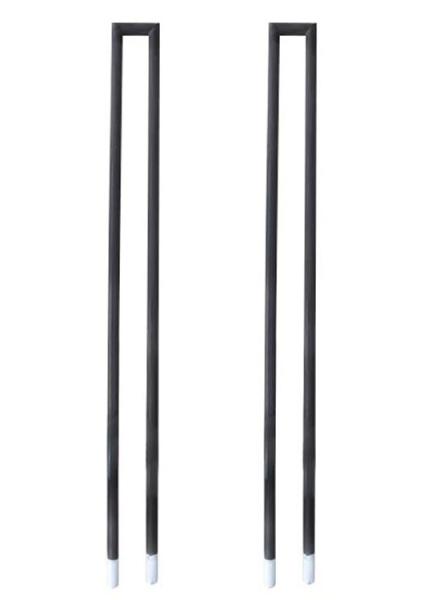

High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1400~1500℃
Flexural Strength :
>300kg/cm2
Size :
Customized
Heat Conduction :
10-14 M.hr.℃
Resistivity :
600～1400 mm2/m
Tensile Strength :
>150kg/cm2
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5.2×10⁻⁶/℃
Description

Description:

Our U-Shape Silicon Carbide (SiC) heating elements are engineered for extreme heat environments, offering reliable and durable performance in industrial high-temperature applications. With a maximum operating temperature of 1500°C, they are ideal for electric furnaces and heating systems across various industries.

Features:

  • High-Purity Material: Made from select green SiC powder ensuring top-quality performance.
  • High-Density Structure: Manufactured using a 500T press machine for uniform density and extended service life.
  • Optimized Resistance Design: Excellent resistance gradient between heating zone and cooling zone prevents overheating at terminals, protecting furnace integrity.
  • Advanced Oxidation Protection: A specialized protective coating on the heating zone significantly enhances antioxidant properties, prolonging element lifespan.
  • Customizable Designs: Available in various standard sizes and geometries, with full customization options.

Available Types:

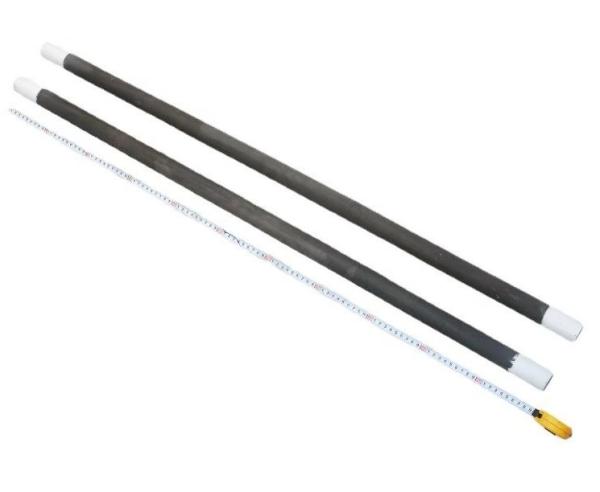

  1. Straight Rod (GD type)

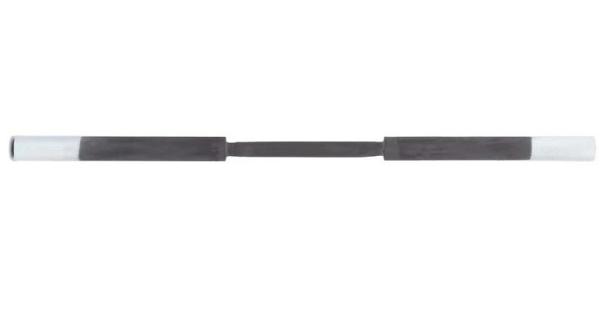

  2. Dumbbell Type (GC type)
  3. U-Shape (U type)
  4. W-Shape (W type)
  5. Single Spiral (SD type)
  6. Double Spiral (SG type)

High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)

Ordering Information (Please Provide the Following Details):

To ensure optimal performance and perfect fit for your application, please confirm these specifications when ordering:

  1. Element Type (e.g., U-type, W-type, etc.)
  2. Outer Diameter (OD)
  3. Heating Zone Length (HZ)
  4. Cooling Zone Length (CZ)
  5. Overall Length (OL)
  6. Resistance Requirements (if specific needed)
  7. Center Distance (For U-type and W-type elements)

Note: All elements can be custom-designed to meet your specific process requirements and equipment specifications.
