Lightweight Pressureless Sintered SIC Fork High Temperature Resistant
Lightweight Pressureless Sintered SIC Fork High Temperature Resistant
Lightweight Pressureless Sintered SIC Fork High Temperature Resistant
Lightweight Pressureless Sintered SIC Fork High Temperature Resistant
Lightweight Pressureless Sintered SIC Fork High Temperature Resistant
Lightweight Pressureless Sintered SIC Fork High Temperature Resistant
Specifications
Brand Name :
KeGu
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Price :
200-500 yuan/kg
Material :
SiC
Composition:SiC :
>98%
Color :
Black
Density :
>3.05g/cm3
Max. Service Temp :
1650°C
Flexural Strength :
3800MPa
Description

Resistance High Temperature SIC Forks Core boost for semiconductor precision manufacturing

Description:

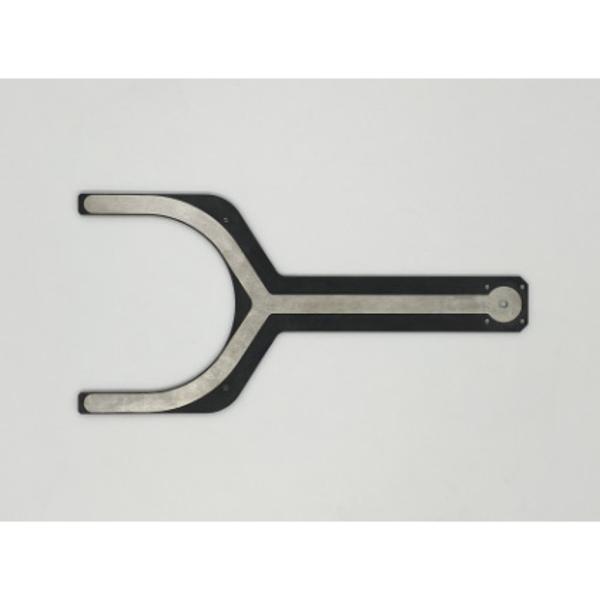

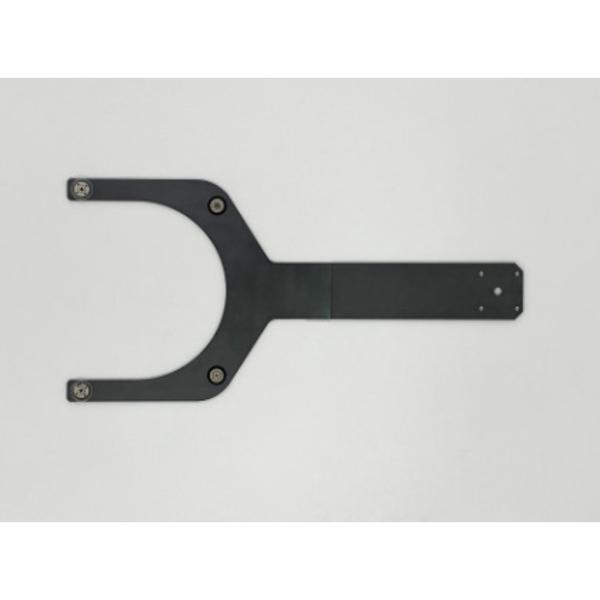

Resistance High Temperature SiC Fork, also known as Pressureless Sintered Silicon Carbide Robotic Arm, is a high-performance mechanical component manufactured using advanced pressureless sintering technology. This product is primarily made of silicon carbide (SiC) and is sintered under normal pressure, resulting in exceptional properties such as high hardness, high strength, high-temperature resistance, and corrosion resistance.

Application:

1. High-Temperature Resistance

2. High Strength and Hardness

3. Corrosion Resistance

4. Lightweight Design

Feature:

The Resistance High Temperature SiC Fork is widely used in semiconductor manufacturing, high-temperature furnaces, aerospace, nuclear energy, and other fields. It is particularly suitable for mechanical components that require high-temperature resistance, corrosion resistance, and high strength.

The physical properties of pressureless sintered silicon carbide ceramics products:

Physical properties Unit SSiC
Composition:SiC Vol% ≥98
Density 20 ℃ g/cm3 ≥3.05
Open Porosity Vol% ≈0
Hardness Rockwell Hardness 45N R45N 93
Vickers Hardness HV1 kg/mm2 2350
Flexural Strength 20°C MPa 320-400
1300°C MPa 300-400
hermal Conductivity 20°C Wm-1K-1 196
1200°C Wm-1K-1 60
Max. Service Temp (air) ℃ 1650
Thermal shock resistance ℃ ＞350
Coficient of Thermal Expansion 10-6K-1 4.0
Modulus of Elasticity @ RT GPa 410
