85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats
85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats
85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats
85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats
85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats
85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats
85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats
85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats
Specifications
Brand Name :
KEGU
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Price :
200-500 yuan/kg
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
≥3.0g/cm3
Max. Service Temp :
1380℃
Flexural Strength :
250MPa
Description

Silicon Carbide Ceramics Furnace, Sic Paddle, Sic Boats

We are an export-oriented enterprise which integrates design, development, production and service. Due to low labour costs and highly skilled work force & state of the art production facility, we are able to manufacture high quality products at lowest prices and provide value for money. We sincerely welcome all friends home and abroad to contact us,either by establishing business relationships or to work together to obtain mutual benefits.

Parameters:

Performance

UNIT

HS-A

HS-P

HS-XA

Grain Size

μm

4-10

4-10

4-10

Density

g/cm

≥3.1

3.0-3.1

>3.1

Hardness (Knoop)

Kg/mm²

2800

2800

2800

Flexural Strength 4 pt @ RT

MPa*m1/2

385

240

420

*10³1b/in²

55

55

55

Compressive Strength @ RT

Mpa

3900

　

3900

*10³1b/in²

560

560

Modulus of Elasticity @ RT

Gpa

410

400

410

*10³1b/in²

59

58

59

Weibull Modulus (2 parameter)

　

8

19

12

Poisson Ratio

　

0.14

0.14

0.14

Fracture Toughness @ RT Double Torsion & SENB

MPa*m1/2

8

8

8

*1³1b/in²in½

Coefficient of Thermal Expansion RT to 700℃

X10-6mm/mmK

4.02

4.2

4.02

X10-6 in/in°F

2.2

2.3

2.2

Maximum Service Temp.Air Mean Specific Heat @ RT

°C

1900

1900

1900

J/gmK

0.67

0.59

0.67

Thermal Conductivity @ RT

W/mK

125.6

110

125.6

Btu/ft h°F

72.6

64

72.6

@200°C

W/mK

102.6

　

102.6

Btu/ft h°F

59.3

59.3

@400°C

W/mK

77.5

　

77.5

Btu/ft h°F

44.8

44.8

Permeability @ RT to 1000°C

31MPa below No gas leakage

Electrical Resistivity @ RT

Ohm-cm

102-106

N/A

102-106

Emissivity

　

0.9

0.9

0.9

Pictures:

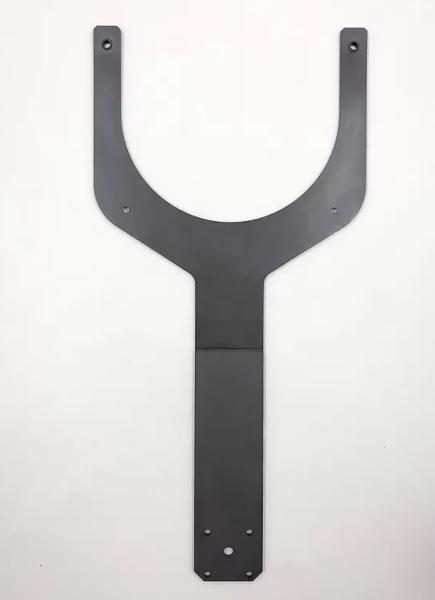

85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats85% Silicon Carbide Ceramics Furnace / Sic Paddle / Sic Tube / Sic Plate / Sic Boats


Application:

  • SiC paddle is used as a wafer boat holder for diffusion process in semiconductor, LED, solar energy industries.

  • SiC process tube is used in the diffusion furnace equipment in semiconductor, LED, solar energy industries.

  • SiC boat is used as a wafer holder in boron or phosphorus diffusion process and widely applied in discrete semiconductor industry.

  • SiC dragon wafer boats are widely used as a wafer holder in high temperature diffusion processes.


Feature requirements:

  • High temperature chemical stability

  • Superior high temperature strength

  • Thermal shock resistance

  • Corrosion resistance of acid and alkali

  • Excellent thermal conductivity


Why better than others:

  1. Customized services

  2. Stable quality and fast delivery
