Specifications
Brand Name :
KEGU
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Price :
200-500 yuan/kg
Material :
SiC
Composition:SiC :
>85%
Color :
Black
Density :
≥3.0g/cm3
Max. Service Temp :
1380℃
Flexural Strength :
250MPa
Description

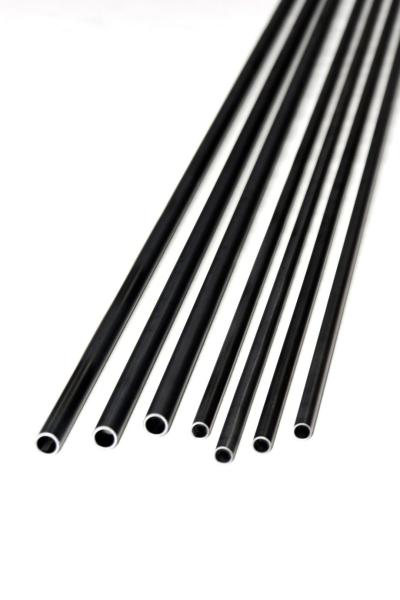

Reaction Sintered Silicon Carbide Air Cooling Tube Industrial Cooling



Description:

Silicon Carbide (SiC) is a compound that consists of silicon (Si) and carbon (C) atoms. It is categorized as a ceramic material due to its unique combination of properties.


The reaction-sintered silicon carbide ceramic products produced by Jinde New Materials have the performance characteristics of high strength, high wear resistance, high temperature resistance, resistance to extreme cold and heat, acid and alkali corrosion resistance, strong oxidation resistance, good thermal shock resistance, good thermal conductivity and resistance to high-temperature creep.


The physical properties of reaction sintered silicon carbide ceramics products:

Physical properties Unit SiSiC
Density g/cm3 ≥3.0
Open Porosity Vol% 0.2
Vickers Hardness HV1 kg/mm2 ≥2100
Flexural Strength 20°C MPa 250
1200°C MPa 280
Coficient of Thermal Expansion 10-6K-1 4.5
Thermal Conductivity(1200°C) Wm-1K-1 45
Modulus of Elasticity @ RT GPa 330
Max. Temperature of Application 1380



Product Features and Uses:

Silicon carbide air cooling tube has good thermal stability, resistance to thermal shock, oxidation, high temperature creep, and resistance to extreme cold wind impact at high temperature; the product has a large high temperature bearing capacity, does not bend or deform after long-term use, and its service life is more than 10 times that of alumina ceramic rods/stainless steel pipes. It is suitable for the cooling zone of kilns for daily-use porcelain, sanitary porcelain, architectural porcelain, magnetic materials, etc.



Properties and Advantage:

  • Extreme Hardness
  • High Thermal Conductivity
  • Chemical Inertness
  • Corrosion Resistance

Forming Technology:

  • Sheet Metal Forming
  • CNC Machining
  • Die-Casting
  • Laser Cutting

Related Products:

  • Abrasive Materials
  • Ceramic Coatings
  • Electronics Components
  • Ceramic Bearings
  • Ceramic Filters
  • Refractory Materials
  • Cutting Tools
  • Wear-Resistant Components
