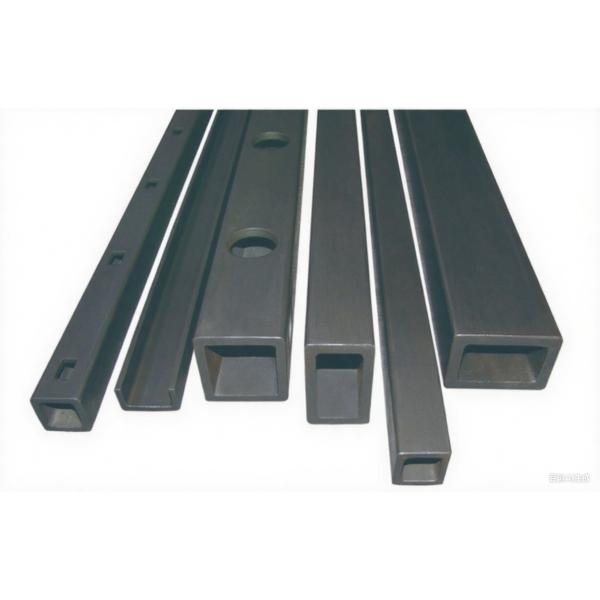

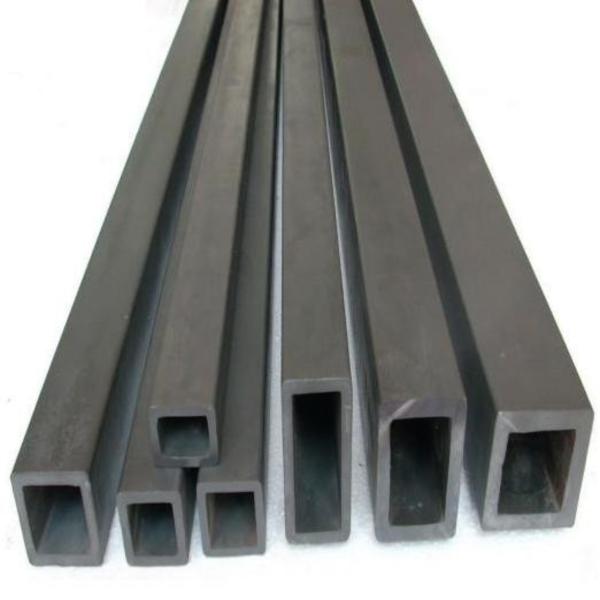

Customized Reaction Sintered Silicon Carbide Square Beam Support
Customized Reaction Sintered Silicon Carbide Square Beam Support
Customized Reaction Sintered Silicon Carbide Square Beam Support
Customized Reaction Sintered Silicon Carbide Square Beam Support
Customized Reaction Sintered Silicon Carbide Square Beam Support
Customized Reaction Sintered Silicon Carbide Square Beam Support
Specifications
Brand Name :
KEGU
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Price :
200-500 yuan/kg
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
≥3.0g/cm3
Max. Service Temp :
1380℃
Flexural Strength :
250MPa
Description

Customized High-Strength Reaction-Sintered Silicon Carbide Square Beam Support with High Temperature Resistance up to 1380°C

Description:

This product is manufactured using reaction sintering technology, boasting exceptional strength, high temperature resistance, corrosion resistance, and thermal shock resistance. It is ideally suited for use as a load-bearing structural framework in shuttle kilns, tunnel kilns, and various high-temperature kiln applications. It maintains stable performance at temperatures up to 1380°C. Customized sizes and end processing are available to cater to diverse needs.

Typical application:

Load-bearing structure of industrial kilns

Feature:

1. Light weight, energy saving.

2. Long service life.

3. High heat transfer efficiency.

4. High temperature non-deformation.

The physical properties of reaction sintered silicon carbide ceramics products:

Physical properties Unit SSiC
Density g/cm3 ≥3.0
Open Porosity Vol% 0.2
Vickers Hardness HV1 kg/mm2 ≥2100
Flexural Strength 20°C MPa 250
1200°C MPa 280
Coficient of Thermal Expansion 10-6K-1 4.5
Thermal Conductivity(1200°C) Wm-1K-1 45
Modulus of Elasticity @ RT GPa 330
Max. Temperature of Application ℃ 1380

Beam Load-Bearing Capacity Table:

The bending strength of reaction-sintered silicon carbide beams is calculated based on 250 MPa, with a 5-fold safety factor. The bearing capacity is determined for a length of 1 meter. When the product length is L, the bearing capacity can be calculated using the following formulas:

  • Concentrated load = Value from table × 1m × L
  • Resultant force of uniformly distributed load = Value from table × 1m × L

This bearing capacity applies to temperatures below 1380℃.

Cross-sectional dimensions(mm)

Thickness

(mm)

Concentrate load

(kg)

Evenly distribute load

(kg)
B H B H B H
30 30 5 74 74 147 147
30 40 5 117 95 235 190
40 40 5 149 149 298 298
50 50 6 283 283 567 567
50 60 6 374 331 748 662
60 60 7 481 481 962 962
