50 HZ 30 KV Hipot Test Set Insulating Gloves Boots Withstanding Tester
50 HZ 30 KV Hipot Test Set Insulating Gloves Boots Withstanding Tester
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Warranty :
1 year free and lifelong maintenance
Input power supply :
Customized
Output voltage :
0-30kV
Capacity :
3kVA
Test units :
6 units each time
Accuracy :
Voltage ±2%(±3 digits) Current±2%(±3 digits)
Description
50 HZ 30 KV Hipot Test Set Insulating Gloves Boots Withstanding Tester
Introduction

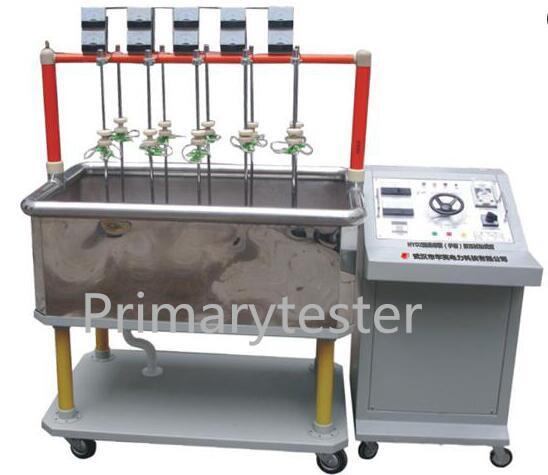

HYDZ insulating gloves and boots tester is application to test leakage current, insulation aging, power frequency of insulating gloves and boots.

Features
1. Input voltage:AC220V 50Hz

2. Output voltage:0-30kV

3. Capacity:3kVA

4. Test units:6 units each time

5. Test data:Display and print voltage data and leakage current data of each unit

6. Overcurrent protection;Overvoltage protection;User-defined time setting,display voltage data and leakage current data

7. LCD display with print

8. Accuracy:Voltage ±2%(±3 digits) Current±2%(±3 digits)

9. Weight:control unit 12kg test bench 60kg

working principl
Access 0 ~ 220 v power supply, adjust the power frequency withstand voltage test bench, according to the testing transformer electromagnetic induction principle, to produce 0 ~ 30 kv transformer (0 to 50 kv) power frequency high voltage to the electrodes, gloves (insulating boots) to obtain the specified test voltage. According to the gloves (insulating boots) test procedures, read and record the test parameters.
