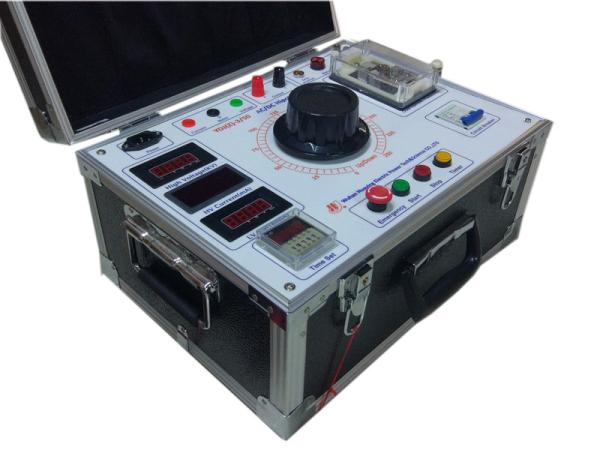

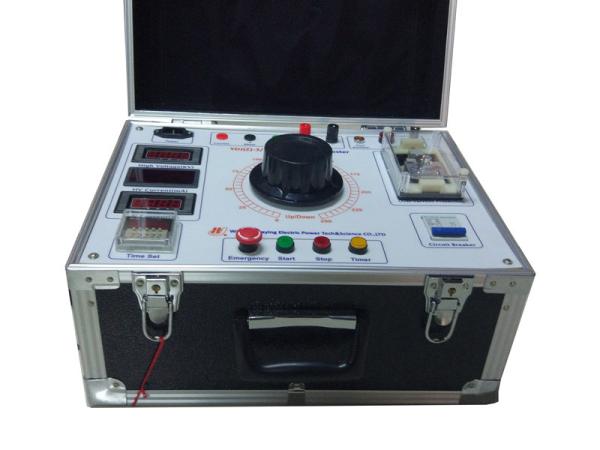

Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Specifications
Brand Name :
Huaying
Model Number :
YDJ YDJZ
Certification :
ISO
Place of Origin :
Hubei, China (Mainland)
MOQ :
1 set
Price :
negotiable
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
type :
oil ac, oil ac dc
Warranty :
1 year free and lifelong maintenance
Capacity :
1.5-150 KVA customized
Voltage :
50-150 KV customized
Power :
accept customization
Application :
Power Transformer AC high voltage withstand test
Description
Oil Immerserd HV Test Of Transformer AC DC Oil Type Hipot Tester With Digital Meter
Introduction

Hipot Tester is applied in power system for insulation test of high voltage equipment.

The typical application of the HIPOT tester is as follow:
1) Power Transformer AC high voltage withstand test
2) Circuit Breaker AC high voltage withstand test
3) High voltage motors high voltage withstand test
4) Voltage/current transformer high voltage withstand test
5) High voltage power source for calibration of high voltage meter

Technical Index
YDJZ-AC DC Oil Hipot Tester
Model

Max

output

capacity

KVA

Max

high

voltage

output

KV

Max

current

in hv

circuit

MA

Voltage

current

input of

voltage

booster

V

Voltage

current

input of

voltage

booster

A

 Ratio
YDJ(Z)-1.5/50 1.5 50 30 200 7.5 500
YDJ (Z) -3/50 3 50 60 200 15 500
YDJ (Z)-5/50 5 50 100 200 25 500
YDJ (Z) -10/50 10 50 200 220/380 50/26 500
YDJ (Z) -20/50 20 50 400 380 53 500
YDJ (Z) -30/50 30 50 600 380 79 500
YDJ (Z) -40/50 40 50 800 380 105 500
YDJ (Z) -50/50 50 50 1000 380 132 500
YDJ (Z) -5/100 5 100 50 200 25 1000
YDJ (Z) -10/100 10 100 100 200/380 50/26 1000
YDJ (Z) -20/100 20 100 200 380 53 1000
YDJ (Z) -30/100 30 100 300 380 79 1000
YDJ (Z) -40/100 40 100 400 380 105 1000
YDJ (Z) -50/100 50 100 500 380 132 1000
YDJ (Z) -100/100 100 100 100 500 263 1000
YDJ (Z) -150/100 150 100 1500 500 300 1000
