50Hz High Voltage Test Equipment Adjustable Variable Frequency Resonance HYXZ
50Hz High Voltage Test Equipment Adjustable Variable Frequency Resonance HYXZ
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO， CE
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Max voltage output: :
Customized
Max output Capacity :
0~6400KVA
Test frequency range :
30~300HZ
Frequency setting resolution :
0.1HZ
Environment condition :
Temperature: 0~50°C
Warranty :
1 year free and lifelong maintenance.
Description

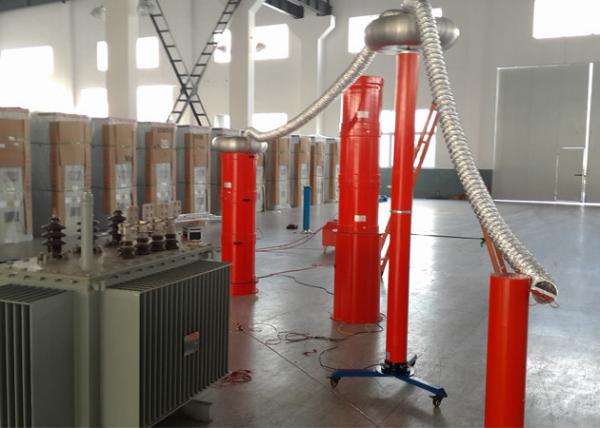

50Hz High Voltage Test Equipment Adjustable Variable Frequency Resonance HYXZ

1. Product Name:High Quality Frequency Resonance HYXZ

2. Equipment Description:

It is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the test set is widely applied in GIS, Power cable and generator insulation tester.

3. Technical Parameters:

1 Max voltage output: 0~1000KV;
2 Max output Capacity: 0~6400KVA;
3 Test frequency range: 30~300HZ;
4 Frequency setting resolution: 0.1HZ;
5 Test voltage waveform: sine wave, waveform deviation factor : ≤1%;
6 Power supply: 380V±10%, three-phase 50Hz/60Hz
7 Environment condition: Temperature: 0~50°C
8 Humidity: ≤ 80%RH

Operating modes: full-automatic, manual, automatic tuning and manual boosting

Ambient temperature -150C –45 0C
Relative humidity ≤90%RH
Altitude ≤2500meter
Rated capacity 108kVA
Input voltage single phase380V, frequency 50Hz
Rated voltage 108kV;54kV;27kV
Rated current 1A;2A;4A
Working frequency 30-300Hz
