High Accuracy Transformer Testing Equipment Large Measurement Range Light Weight
High Accuracy Transformer Testing Equipment Large Measurement Range Light Weight
High Accuracy Transformer Testing Equipment Large Measurement Range Light Weight
High Accuracy Transformer Testing Equipment Large Measurement Range Light Weight
Specifications
Brand Name :
Huaying
Model Number :
HYKFR
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Product name :

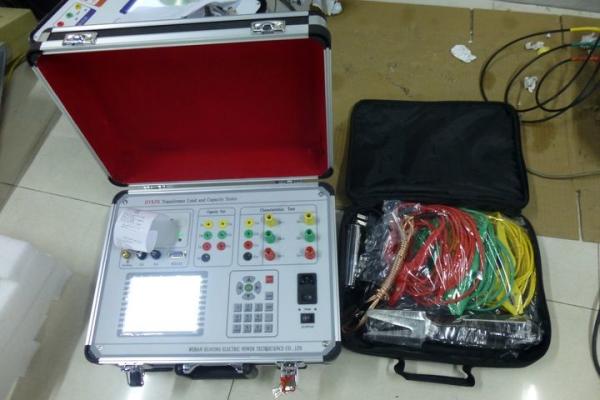

Transformer load and capacity tester
Capacity measuring range :
30kVA ~ 31500kVA
Current measurement range :
0-100A
Power Input :
AC220V ± 10%
Display :

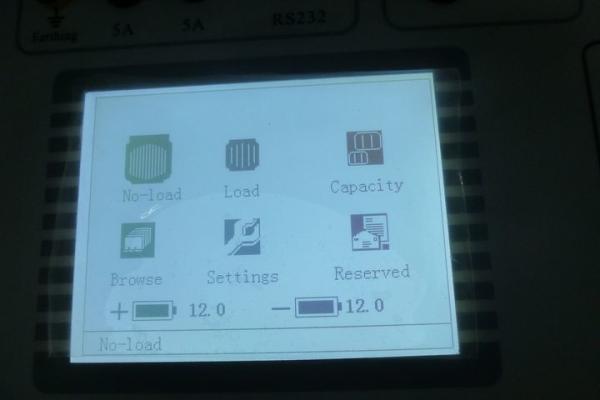

LCD screen
Communication :
RS232 port
Description

High Accuracy Transformer Testing Equipment Large Measurement Range Light Weight

1. Equipment Description:

Measure the transformer load current, load loss, short-circuit voltage, short circuit (load) losses, capability.

2. Main Test Item:

  • RMS phase voltage:Uab,Ubc,Uca；

  • Average value of three-phase AC voltage:/Uab,/Ubc,/Uca；

  • Three-phase current RMS:Ia,Ib,Ic；

  • Percentage of no-load loss and no-load current: :Po,Io%；

  • Load loss, impedance voltage, and the percentage of short-circuit impedance: :Pt,ekt,Zt；

  • Any given temperature, load loss, the percentage impedance voltage and short circuit impedance;

  • Transformer capacity test and capacity confirmation;

3.Technical Parameters:

  • Capacity measuring range : 30kVA ~ 31500kVA

  • Current measurement range:0-100A, auto-switch the measurement range

  • Current measurement accuracy: ± (0.2% + 3digits)

  • Voltage measurement range: Line Voltage0-750V;phase voltage 0-450V, auto-switch the measurement range

  • Voltage measurement accuracy: ± (0.2% + 3digits)

  • Insulation resistance: > 100MΩ

  • Leakage current: <3.5mA

  • Dielectric strength: the power connection on the chassis can withstand: 1500V

  • External transformer can broaden the scope of measurement instruments;

  • Frequency Range: 40 ~ 65Hz, accuracy class 0.2;

  • Power Input: AC220V ± 10%;
