Fast Speed Transformer Turns Ratio Meter Z Type Transformer Winding Wide Testing Range
Fast Speed Transformer Turns Ratio Meter Z Type Transformer Winding Wide Testing Range
Specifications
Brand Name :
Huaying
Model Number :
HYBC-Z
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
50 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Transformation ratio testing range :
0.8～10000
Group testing range :
1～12
Power input :
230V±10%, 50HZ±1Hz
Weight :
6.9kg
Name :
Transformer ratio tester
Feature :
easy operation
Description

Fast Speed Transformer Turns Ratio Meter Z Type Transformer Winding Wide Testing Range

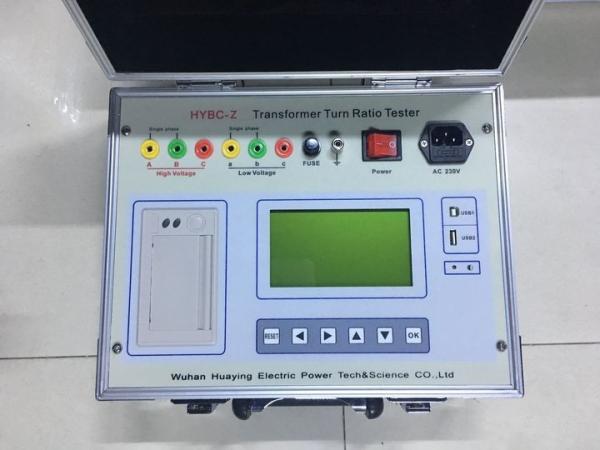

1. Equipment Description:

HYBC-Z Tansformer ratio meter z type is specially designed for three- phase transformer in power system, especially for transformer of type Z winding and other transformers whose zero-load current is relatively high.
Features:
  • wide testing range
  • fast testing speed
  • favorable repeatability
  • flexible data processing
  • convenient connection
  • complete protection
  • easy learning and convenient operation.
2. Main Functions:
1 Applicable to transformers connected in Z type.
2 Two output voltages are optional and applicable to transformer whose zero-load current is relatively high.
3 Have wide testing range and the highest transformation ratio may reach 10000.
4 Automatically calculate tap position.
5 Fast speed, which is only 18 seconds for three-phase
6 Favorable repeatability.
7 Automatically save 99 data at most.
8 Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.
9 Have transformer short-circuit protection and interturn short-circuit protection functions. In case of short circuit, relevant information will be displayed on the LCD screen in characters.
10 The upper computer could control the whole testing process, save data .
11 Struction manual is attached to the tester, providing convenience for users.
12 The tester is small and is a little bigger than a piece of A4 paper.
13 The tester is light and its weight is only 6.9kg.
3.Technical Parameters:
Transformation ratio testing range: 0.8～10000
Group testing range: 1～12
Transformation ratio testing accuracy: Class 0.2 (180V: 0.8～1000)
Class 0.5 (180V: 1000～10000)
Class 0.2 (10V: 0.8～200)
Transformation ratio resolution: 0.0001
Power input: 230V±10%, 50HZ±1Hz
Service temperature: -20℃~40℃
Relative humidity: ≤85%, no condensation
Overall size of host machine: 325mm×278mm×188 mm
Weight of host machine: 6.9kg
