Portable 10A DC Transformer Testing Machine High Precision Easy Operation
Portable 10A DC Transformer Testing Machine High Precision Easy Operation
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYZC-10A
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Product name :
10A Transformer DC Resistance Tester
Feature1 :
large output power
Feature2 :
high security
Power supply :
AC220V±10%,(50±1)HZ
Weight :
10KG
Test current :
20mA 200mA 2A 5A 10A
Description

Portable 10A DC Transformer Testing Machine High Precision Easy Operation

2. Equipment Description:

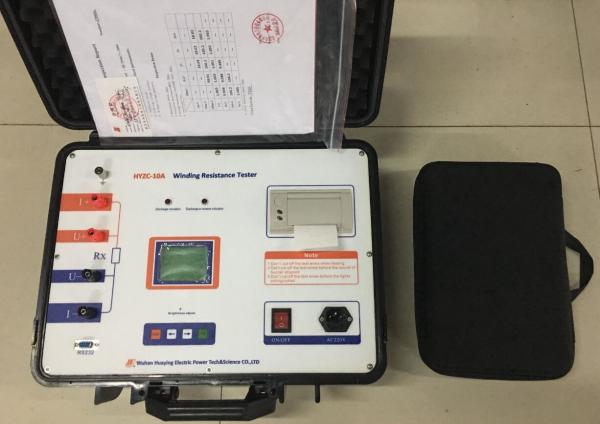

  • The HYZC-10A Transformer Winding Resistance Tester/DC resistance meter uses Constant current source to measure the DC resistance of inductance circuit such as power transformer coil, current transformer coil and so on.
  • The HYZC-10A Transformer Winding Resistance Tester/DC resistance meter has functions of self test, data processing, discharge rapidly, result print and so on.

3. Technical Parameters:

Resistance precision: ±(0.2%RGD+2d)
Test range:

1.000Ω-1000Ω(20mA)

100.0mΩ-100.0Ω(200mA)

10.00mΩ-10.00Ω (2A)

4.000mΩ-4.000Ω (5A)

2.000mΩ-2.000Ω (10A)
The least scale 1uΩ
Output current precision: ±5%
Communication: Support for data uploading to PC
Storage: Two hundred groups of data can be stored
Print function: With thermal printer to print the test data
Weight: 10KG
Power supply: AC220V±10%,(50±1)HZ
Operation condition: -10~50℃ Humidity <90% No condensation.
