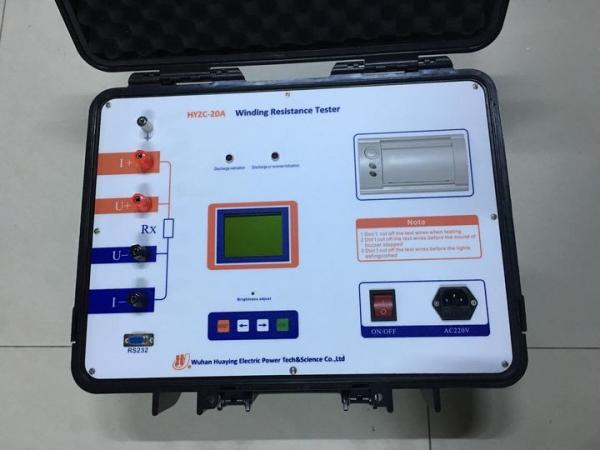

Strong Anti Jamming Transformer Testing Equipment 20A For Measuring Winding Resistance
Strong Anti Jamming Transformer Testing Equipment 20A For Measuring Winding Resistance
Strong Anti Jamming Transformer Testing Equipment 20A For Measuring Winding Resistance
Strong Anti Jamming Transformer Testing Equipment 20A For Measuring Winding Resistance
Specifications
Brand Name :
Huaying
Model Number :
HYZC-20A
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
test range :
1.000mΩ-1000Ω
Power supply :
AC220V±10%，(50±1)HZ
Weight :
10KG
Communication :
RS232 port
Name :
20A Winding resistance tester
Display :
LCD screen
Description

Strong Anti Jamming Transformer Testing Equipment 20A For Measuring Winding Resistance

1. Equipment Description:

There are four DC currents to select for HYZC-20A which has a large output power, the power of the tester itself is very little.

Used four lines, it is quick,stable,high precision for testing the winding resistance.

In addition, it has a strong ability for anti-jamming ,over current ,over voltage and discharge.

The security is also very high, So it is a ideal tester for testing various resistances especially the sensibility equipment.

2.Technical Parameters:

Resistance precision:

±(0.2%RGD+2d)

Test range:

1.000Ω-1000Ω(20mA)

100.0mΩ-100.0Ω(200mA)

10.00mΩ-10.00Ω (2A)

4.000mΩ-4.000Ω (5A)

2.000mΩ-2.000Ω (10A)

1.000mΩ-1.000Ω (20A)

The least scale:

1uΩ

Output current precision:

±5%

Support for data uploading to PC

Two hundred groups of data can be stored

Weight

10KG

Power supply:

AC220V±10%,(50±1)HZ

Operation condition:

-10~50℃ Humidity <90% No condensation.
