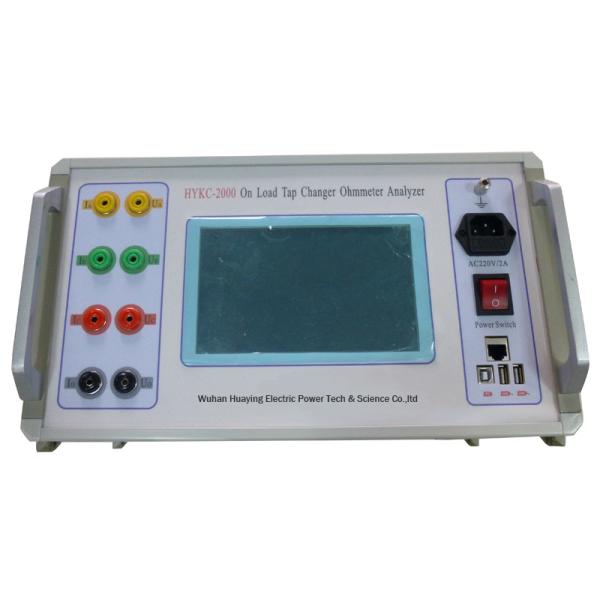

Portable Intelligent Transformer Test Set On Load Tap Changer Ohmmeter Analyzer
Portable Intelligent Transformer Test Set On Load Tap Changer Ohmmeter Analyzer
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYKC-2000
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Product Name :
On Load Tap Changer Ohmmeter Analyzer
Function1 :
test transient time
Function2 :
test transition waveform
Function3 :
test transition resistance
Function4 :
test synchronization status of three phase.
Communication :
USB port
Description

Portable Intelligent Transformer Test Set On Load Tap Changer Ohmmeter Analyzer

1. Equipment Description:

HYKC-2000 is mainly applied to test transient time, transition waveform, transition resistance, synchronization status of three phase.

2. Main Functions:

1 Test transformers of type Y0 Y Δ and display resistance value directly;

2 Automatically analyze waveform fault and mark the fault.

3 Automatically adjust resistance value and time range according to sampling data

4 Transformer type Δ is able to display to synchronization status of three phase;

5 Be able to test with winding or without winding;

6 Four terminal connection mode and provide high accuracy of resistance measurement.

7 Continuous test to save time of power off

8 Make word report

9 800×480 colorized LCD with touch screen and high speed printer

10 Store 1000 groups of data and also can be saved by USB flash disk

3. Technical Parameters:

Three phase constant current source charge:

charge current: 3A/1A; 0.6A/0.2A

Maximum voltage of the port:

24V

Maximum range of transition resistance:

100Ω

Measuring range:

1A:0.4Ω~20Ω 0.2A:10Ω~100Ω

Record time of waveform:

300ms

Sample rate:

30k

Resolution of time:

0.1ms

Resolution of resistance:

0.1Ω

Accuracy of transition resistance:

±5% Reading±0.1Ω

Accuracy of transient time:

±0.5% Reading±0.2mS

Temperature:

-10-40°C Humidity: <85%RH
