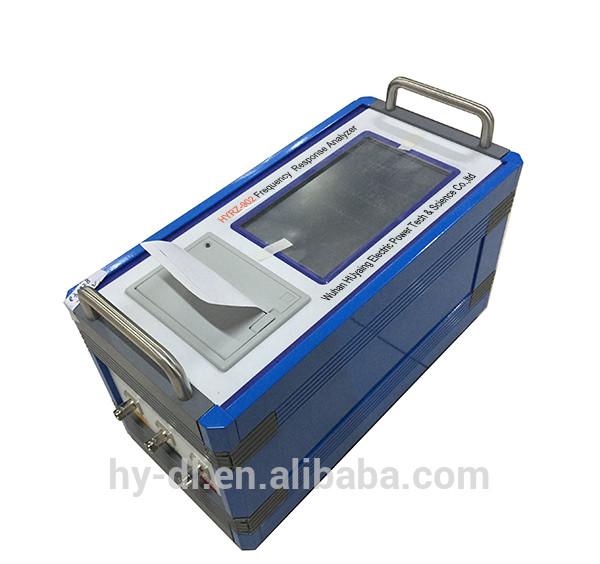

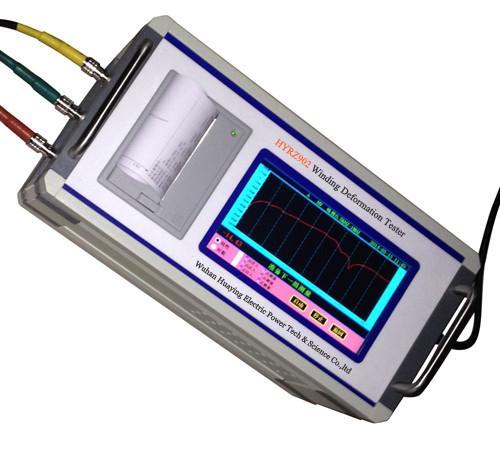

USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester
USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester
USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester
USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester
USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester
USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester
USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester
USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Product name :
Frequency response analyzer
Display :
7 inch LCD screen
Feature1 :
touch screen operation
Communication :
USB port
Sweep modes :
Linear sweep and Section sweep
Feature 2 :
light weight
Description

USB Port Transformer Testing Equipment Sweep Frequency Response Winding Deformation Tester

1. Equipment Description:

1/. Using the advanced technical of DDS;

2/. Using the high speed and advanced microprocessor to design;

3/. Using double channels of AD chip of 16 bits;

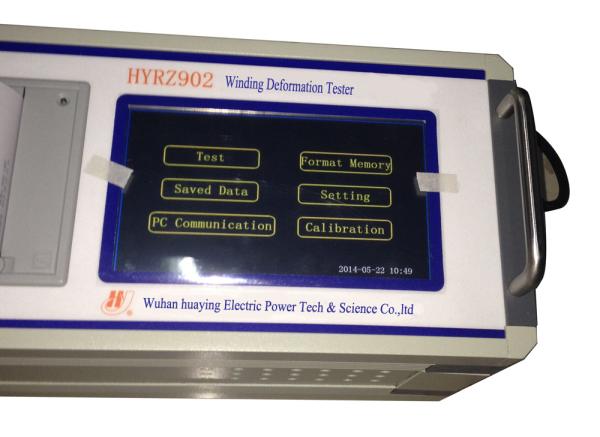

4/. With seven inch LCD touch screen of which the brightness can be adjusted;

5/. With thermal printer of which the print thick can be adjusted;

6/. It could store one hundred and twenty groups of data, which could be read to current screen or upload to the PC;

7/. With PC software using which we could upload data ,test, analyze data, print data, or create word document;

8/. Using USB2.0 to connect to the device;

9 /.Tester dimension:31cm X 15cm X 15cm;

10 /. Weight:4.0KG.

2.0Technical Parameters:

1/. Two different sweep modes:Linear sweep,Section sweep;

(A) Linear sweep: 0.5KHZ-1MHZ interval 0.5KHZ 2000 dots

(B) Section sweep:

50HZ-100HZ interval 2HZ 25 dots

100HZ-1KHZ interval 20HZ 45 dots

1KHZ -10KHZ interval 50HZ 180 dots

10KHZ-100KHZ interval 0.2KHZ 450 dots

100KHZ – 500KHZ interval 0.5KHZ 800 dots

500KHZ – 1000KHZ interval 1KHZ 500 dots

2/. Test range:(-100dB)-(+20dB)

3/. Test accuracy:0.1dB;

4/. Frequency accuracy:<0.01%;

5/. Signal input impedance:>1MΩ;

6/. Signal output impedance:50Ω;
