Low Noise Different Frequency Dielectric Test Equipment High Voltage Hipot Tester
Low Noise Different Frequency Dielectric Test Equipment High Voltage Hipot Tester
Low Noise Different Frequency Dielectric Test Equipment High Voltage Hipot Tester
Low Noise Different Frequency Dielectric Test Equipment High Voltage Hipot Tester
Low Noise Different Frequency Dielectric Test Equipment High Voltage Hipot Tester
Low Noise Different Frequency Dielectric Test Equipment High Voltage Hipot Tester
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYGS
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
5 sets per week
Power Supply :
AC 220V±10%
High output :
0.5KV∽10KV
tgδ measuring range :
Unlimited
Cx measuring range :
15pF ＜ Cx ＜ 300nF
Feature :
light weight
Product name :
Tan delta tester
Description

Low Noise Different Frequency Dielectric Test Equipment High Voltage Hipot Tester

1. Equipment Description:

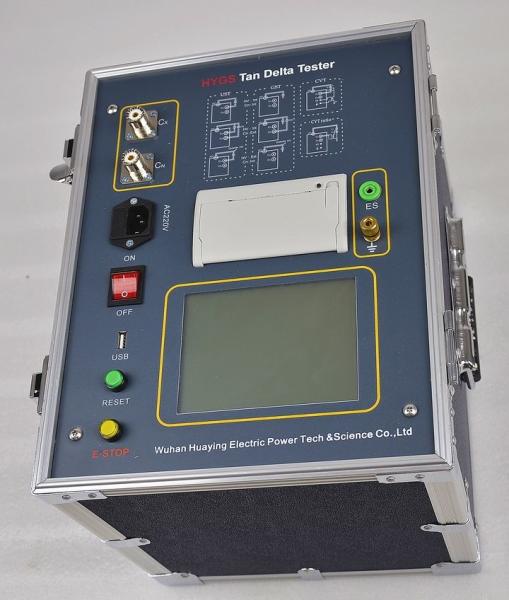

HYGS Portable different frequency dielectric loss tester is applied to measure the dielectric loss and capacitor value of insulation materials in high voltage power equipment. The non-power frequency voltage source is integrated in the tester to avoid power frequency interference. That make the tester has a good performance in measurement precision.

2.Technical Parameters:

1

Use conditions

-15℃∽40℃

RH＜80%

2

Anti-interference

Frequency conversion

3

Power

AC 220V±10%

Allowable generator

4

High output

0.5KV∽10KV

Every 0.1kV

Precision

2%

Maximum current

200mA

Capacity

2000VA

5

Self-excited power

AC 0V∽50V/15A

45HZ/55HZ 47.5HZ/52.5HZ

55HZ/65HZ 57.5HZ/62.5HZ

Automatic double frequency

6

Resolving power

tgδ: 0.001%

Cx: 0.001pF

7

Precision

△tgδ:±(Reading*1.0%+0.040%)

△C x :±(Reading*1.0%+1.00PF)

8

measuring range

tgδ

Unlimited

C x

15pF ＜ Cx ＜ 300nF

10KV

Cx ＜ 60 nF

5KV

Cx ＜ 150 nF

1KV

Cx ＜ 300 nF

CVT test

Cx ＜ 300 nF

9

CVT range

10∽10000

accuracy

0.1%

Resolving power

0.01

10

Exterior dimension

350(L)×270(W)×270(H)

11

Memory size

The 200 group supports U disk data storage

12

Weight

28 Kg
