High Precision Transformer Test Instruments Tangent Delta Tester Automatically Measurement
High Precision Transformer Test Instruments Tangent Delta Tester Automatically Measurement
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYGS
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
5 sets per week
Power Supply :
AC 220V±10%
High output :
0.5KV∽10KV
tgδ measuring range :
Unlimited
Cx measuring range :
15pF ＜ Cx ＜ 300nF
Feature :
touch screen opeation
Weight :
28 Kg
Description

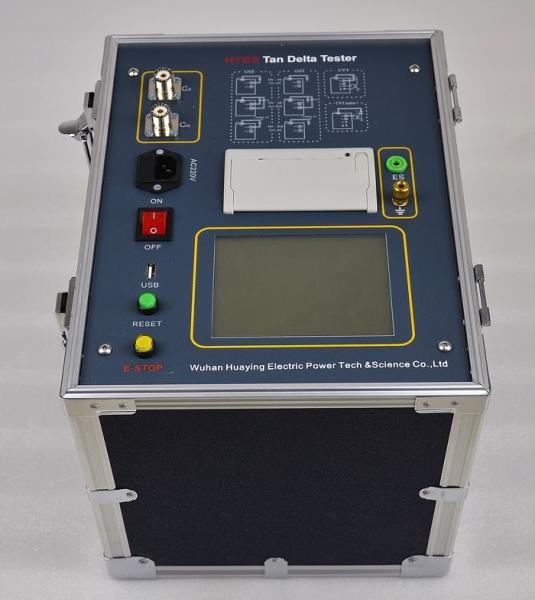

High Precision Transformer Test Instruments Tangent Delta Tester Automatically Measurement

1. Equipment Description:

HYGS Different Frequency Automatic Dielectric is a high-precision instrument, which can be applied to automatically measure electrical loss tangent (tgδ ) and capacitance of all kinds of high voltage electrical equipments on the spot of power plants, substations,laboratory, etc.
The instrument is an integrated structure with a dielectric loss test bridge, a variable frequency power supply, a step-up transformer and a SF6 high stability standard capacitor. High voltage source inverter test generated inside the instrument, the transformer voltage for sample test. If the frequency is 50Hz,47.5Hz52.5Hz,45Hz55Hz,60Hz,57.5Hz62.5Hz,55Hz65Hz, the digital notch filter is used to avoid the interference of the power frequency electric field to the test, which solves the problem of accurate measurement under the strong electric field interference. At the same time, the utility model is suitable for the occasions that the generator is used for power supply after the power cut. The instrument with insulation cup can test the dielectric loss of insulating oil.
2. Technical Parameters:
1 Use conditions -15℃∽40℃ RH＜80%
2 Anti-interference Frequency conversion
3 Power AC 220V±10% Allowable generator
4 High output 0.5KV∽10KV Every 0.1kV
Precision 2%
Maximum current 200mA
Capacity 2000VA
5 Self-excited power AC 0V∽50V/15A

45HZ/55HZ 47.5HZ/52.5HZ

55HZ/65HZ 57.5HZ/62.5HZ

Automatic double frequency
6 Resolving power tgδ: 0.001% Cx: 0.001pF
7 Precision △tgδ:±(Reading*1.0%+0.040%)
△C x :±(Reading*1.0%+1.00PF)
8 measuring range tgδ Unlimited
C x 15pF ＜ Cx ＜ 300nF
10KV Cx ＜ 60 nF
5KV Cx ＜ 150 nF
1KV Cx ＜ 300 nF
CVT test Cx ＜ 300 nF
9 CVT range 10∽10000
accuracy 0.1%
Resolving power 0.01
10 Exterior dimension 350(L)×270(W)×270(H)
11 Memory size The 200 group supports U disk data storage
12 Weight 28 Kg
