Wide Range Transformer Testing Equipment Transformer Ratio Meter Fast Testing Speed
Wide Range Transformer Testing Equipment Transformer Ratio Meter Fast Testing Speed
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYBC-Z
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Product name :
Tansformer ratio meter z type
Feature1 :
wide testing range
Feature2 :
fast testing speed
Feature3 :
favorable repeatability
Feature4 :
flexible data processing
Feature5 :
complete protection
Description

Wide Range Transformer Testing Equipment Transformer Ratio Meter Fast Testing Speed

1. Equipment Description:

HYBC-Z Tansformer ratio meter z type is specially designed for three- phase transformer in power system, especially for transformer of type Z winding and other transformers whose zero-load current is relatively high.
The tester has wide testing range, fast testing speed, favorable repeatability, flexible data processing, convenient connection, complete protection, easy learning and convenient operation.
2. Main Functions:
1 Applicable to transformers connected in Z type.
2 Two output voltages are optional and applicable to transformer whose zero-load current is relatively high.
3 Have wide testing range and the highest transformation ratio may reach 10000.
4 Automatically calculate tap position.
5 Fast speed, which is only 18 seconds for three-phase
6 Favorable repeatability.
7 Automatically save 99 data at most.
8 Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.
9 Have transformer short-circuit protection and interturn short-circuit protection functions. In case of short circuit, relevant information will be displayed on the LCD screen in characters.
10 The upper computer could control the whole testing process, save data .
11 Struction manual is attached to the tester, providing convenience for users.
12 The tester is small and is a little bigger than a piece of A4 paper.
13 The tester is light and its weight is only 6.9kg.
3. Technical Parameters:
1 Transformation ratio testing range: 0.8～10000
2 Group testing range: 1～12
3 Transformation ratio testing accuracy:
Class 0.2 (180V: 0.8～1000)
Class 0.5 (180V: 1000～10000)
Class 0.2 (10V: 0.8～200)
4Transformation ratio resolution: 0.0001
5 Power input: 230V±10%, 50HZ±1Hz
6 Service temperature: -20℃~40℃
7 Relative humidity: ≤85%, no condensation
8 Overall size of host machine: 325mm×278mm×188 mm
9 Weight of host machine: 6.9kg

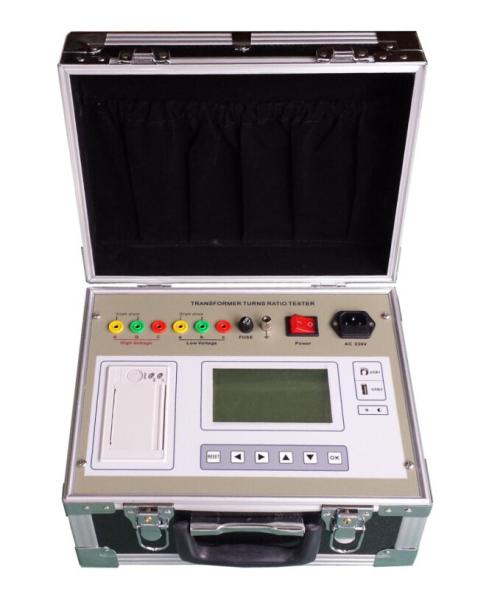

4. Product Picture:

Wide Range Transformer Testing Equipment Transformer Ratio Meter Fast Testing Speed
