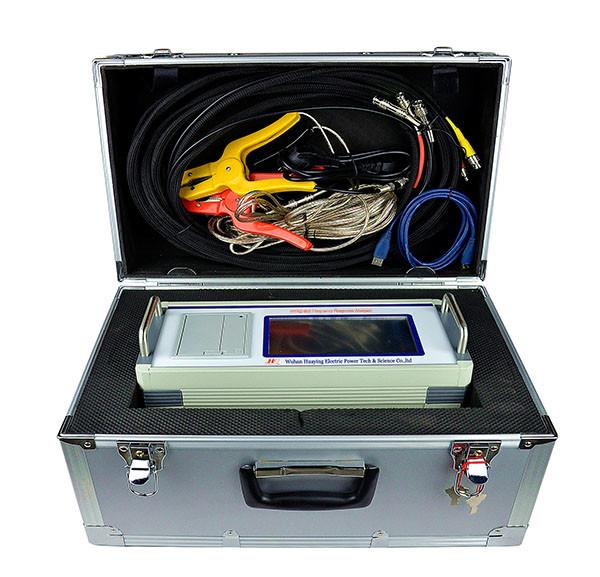

Automatic Transformer Testing Equipment With Seven Inch Lcd Touch Screen
Automatic Transformer Testing Equipment With Seven Inch Lcd Touch Screen
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
HYRZ-902
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Product Name :
Transformer Sweep Frequency Response Analyzer
Two different sweep modes :
Linear sweep,Section sweep
Feature1 :
Using double channels of AD chip of 16 bits
Feature2 :
With thermal printer
Feature3 :
With PC software
Feature4 :
Using USB2.0 to connect to the device
Description

Automatic Transformer Testing Equipment With Seven Inch Lcd Touch Screen

1. Equipment Description:

1 Using the advanced technical of DDS;

2 Using the high speed and advanced microprocessor to design;

3 Using double channels of AD chip of 16 bits;

4 With seven inch LCD touch screen of which the brightness can be adjusted;

5 With thermal printer of which the print thick can be adjusted;

6 It could store one hundred and twenty groups of data, which could be read to current screen or upload to the PC;

7 With PC software using which we could upload data ,test, analyze data, print data, or create word document;

8 Using USB2.0 to connect to the device;

9 Tester dimension:31cm X 15cm X 15cm;

10 Weight:4.0KG.

2.Technical Parameters:

1 Two different sweep modes:Linear sweep,Section sweep;

Linear sweep:

0.5KHZ-1MHZ interval 0.5KHZ 2000 dots

Section sweep:

50HZ-100HZ interval 2HZ 25 dots

100HZ-1KHZ interval 20HZ 45 dots

1KHZ -10KHZ interval 50HZ 180 dots

10KHZ-100KHZ interval 0.2KHZ 450 dots

100KHZ – 500KHZ interval 0.5KHZ 800 dots

500KHZ – 1000KHZ interval 1KHZ 500 dots

2 Test range:(-100dB)-(+20dB)

3 Test accuracy:0.1dB;

4 Frequency accuracy:<0.01%;

5 Signal input impedance:>1MΩ;

6 Signal output impedance:50Ω;
