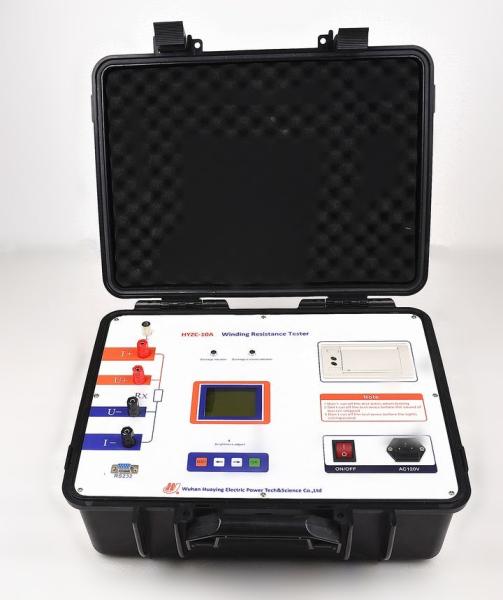

Quick Stable 10A Transformer Testing Equipment For Measuring Power Transformers
Quick Stable 10A Transformer Testing Equipment For Measuring Power Transformers
Quick Stable 10A Transformer Testing Equipment For Measuring Power Transformers
Quick Stable 10A Transformer Testing Equipment For Measuring Power Transformers
Quick Stable 10A Transformer Testing Equipment For Measuring Power Transformers
Quick Stable 10A Transformer Testing Equipment For Measuring Power Transformers
Specifications
Brand Name :
Huaying
Model Number :
HYZC-10A
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Resistance precision :
±（0.2％RGD+2d）
Power supply :
AC220V±10%，(50±1)HZ
Weight :
10KG
the least scale :
1uΩ
Communication :
RS232 port
Product name :
10A DC Resistance Tester
Description

Quick Stable 10A Transformer Testing Equipment For Measuring Power Transformers

2. Functions:

  • A new switching power supply technology makes output current more stable and power larger than before.

  • The tester has an advanced signal process circuit which has a good performance at anti-noise. Test data is precise and stable.

  • The tester has protections to prevent circuit over-current, circuit over-voltage, wrong operation, discharge and so on.

  • Small size, light weight and more suitable for outdoor using.

  • Varies levels of output current make measuring range more wide.

  • Large-screen LCD makes operation easy.

3. Technical Parameters:

  • resistance precision:±(0.2％RGD+2d)

  • test range:

1.000Ω-1000Ω(20mA)

100.0mΩ-100.0Ω(200mA)

10.00mΩ-10.00Ω (2A)

4.000mΩ-4.000Ω (5A)

2.000mΩ-2.000Ω (10A)

  • the least scale:1uΩ

  • Output current precision:±5%

  • Support for data uploading to PC

  • Two hundred groups of data can be stored

  • With thermal printer to print the test data

  • Weight:10KG

  • power supply:AC220V±10%,(50±1)HZ

  • operation condition:-10～50℃ Humidity <90％ No condensation
