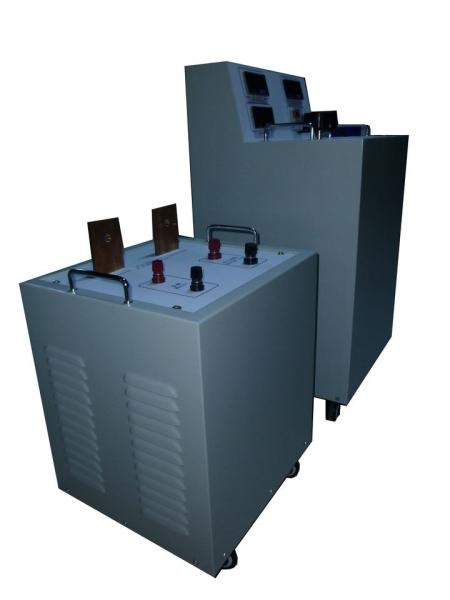

SLQ Primary Injection Test Equipment Single Phase High Current Generator
SLQ Primary Injection Test Equipment Single Phase High Current Generator
Specifications
Brand Name :
Huaying
Model Number :
SLQ
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Duty cycle :
1 mins or long time
Input power supply :
can be customized
Output current :
can be customized
Warranty :
1 year free and lifelong maintenance
Customize service :
Provided
Capacity :
3KVA-150KVA
Description

SLQ Primary Injection Test Equipment Single Phase High Current Generator

Product Name:

Primary Current Injection Test Set SLQ

Features:

1. Large current generator as the current source for the test of electrical equipment for thermal stability, dynamic stability test when low-voltage high current power supply, such as air circuit breaker, contactor, relay temperature rise test and tripping.

2. Single phase high current generator to test the three phase should be carried out separately.

3. Three phase high current generator is mainly used for three-phase electrical products testing, and also can be used to test single-phase electrical products. The control scheme of three phase and single phase high current generator is the same, but the three-phase current generator output of three-phase current.

4. The high current generator is composed of three parts: the transformer, the voltage regulator and the control.

Equipment Description:

​SLQ primary injection test set is a high current generator instrument. It is applied in current transformer test , circuit breaker test and so on. Adjustable output current, smooth in current rise, large scope of load variation, easy and safe operation.

Technical Parameters:

Type

Capacity

(kva)

Power supply

Output

Impedance voltage %

Idle current %

mode

I

(A)

V

(V)

I

(A)

V

(V)

SLQ-5/500

3

13.6

220

500

5

>8

>6

single

SLQ -5/1000

5

22.7

220

1000

5

>8

>6

single

SLQ -10/2000

10

46

220

2000

5

>8

>6

Separated

SLQ -12/4000

12

30

400

2000/4000

6/3

>8

>6

Separated

SLQ -15/5000

15

37.5

400

2500/5000

6/3

>8

>6

Separated

SLQ -150/25kA

150

375

400

25000

6

>8

>6

Separated
