2000A High Current Primary Current Injection Test Set For Current Testing
2000A High Current Primary Current Injection Test Set For Current Testing
2000A High Current Primary Current Injection Test Set For Current Testing
2000A High Current Primary Current Injection Test Set For Current Testing
2000A High Current Primary Current Injection Test Set For Current Testing
2000A High Current Primary Current Injection Test Set For Current Testing
Specifications
Brand Name :
Huaying
Model Number :
SLQ
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Standard export wooden packing
Voltage :
AC 110V /115V /120V /200V /220V /230V can be customzied
Input frequency :
50Hz/60Hz can be customize
Warranty :
1 year free and lifelong maintenance
Duty cycle :
customized
Capacity :
3-150KVA
Description

2000A High Current Primary Current Injection Test Set For Current Testing

1. Product Name:

Primary Current Injection Test System SLQ

2. Equipment Description:

​SLQ primary injection test set is a high current generator instrument. It is applied in current transformer test , circuit breaker test and so on. Adjustable output current, smooth in current rise, large scope of load variation, easy and safe operation.

3.Technical Parameters:

Type

Capacity

(kva)

Power supply

Output

Impedance voltage %

Idle current %

mode

I

(A)

V

(V)

I

(A)

V

(V)

SLQ-5/500

3

13.6

220

500

5

>8

>6

single

SLQ -5/1000

5

22.7

220

1000

5

>8

>6

single

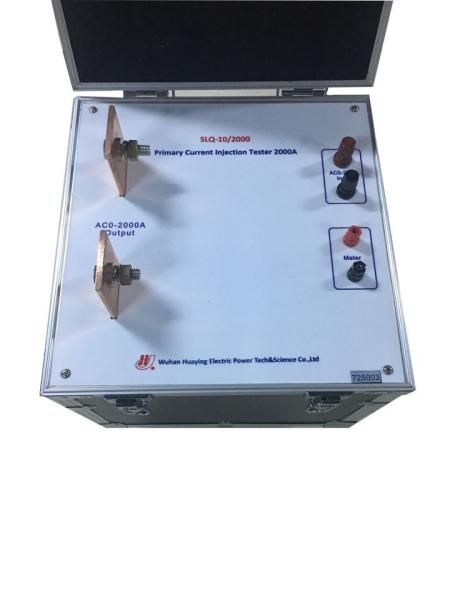

SLQ -10/2000

10

46

220

2000

5

>8

>6

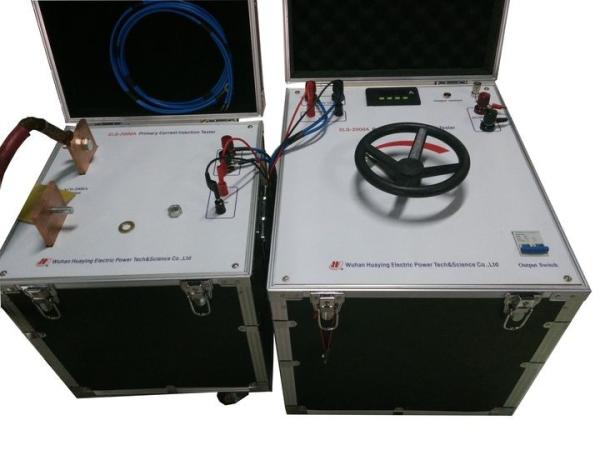

Separated

SLQ -12/4000

12

30

400

2000/4000

6/3

>8

>6

Separated

SLQ -15/5000

15

37.5

400

2500/5000

6/3

>8

>6

Separated

SLQ -150/25kA

150

375

400

25000

6

>8

>6

Separated

Environment temperature: 0~50°C

Humidity: ≤85%RH

4. Technique Index

1 Power supply: AC220V or AC 400V, 45Hz~65Hz. The power supply voltage is depends on the power output capacity. Detail information is as table 1.
2 Maximum output current: 500A~25000A. Detail information is as table 1. 3 Impendence voltage: 8%
4 Idle current: 6%
5 Current distortion <5%
6 Current is measured from the secondary of current transformer which is installed in the internal of the current booster.

5. The display mode is customized according to the requirement of customer from the follow list:
1> Analog Current Meter, accuracy class 0.5
2> 4 and 1/2 digitals current meter, accuracy class 0.5
7 Timer indication of test running is an optional configuration. The timer could be customized according to the requirement of customer from the follow list:
1) 4 digital timer from 0~9999s / 0~999.9s /0~99.99s, accuracy 0.5%RDG+5D
2) 5 digital timer from 0~99999s / 0~9999.9s /0~999.99s, accuracy 0.2%RDG+2D
3) 6 digital timer from 0~999999s / 0~99999.9s /0~9999.99s, accuracy 0.1%RDG+1D
work temperature:0~40 C, Humidity <90%
