Custom Primary Current Injection Test Equipment , High Current Injection Test Set
Custom Primary Current Injection Test Equipment , High Current Injection Test Set
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Model :
SLQ
Duty cycle :
customzied
Humidity :
≤85%RH
Environment temperature :
0~50°C
Power :
220V 60Hz
Warranty :
1 year free and lifelong maintenance
Description

Custom Primary Current Injection Test Equipment , High Current Injection Test Set

1. Product Name:

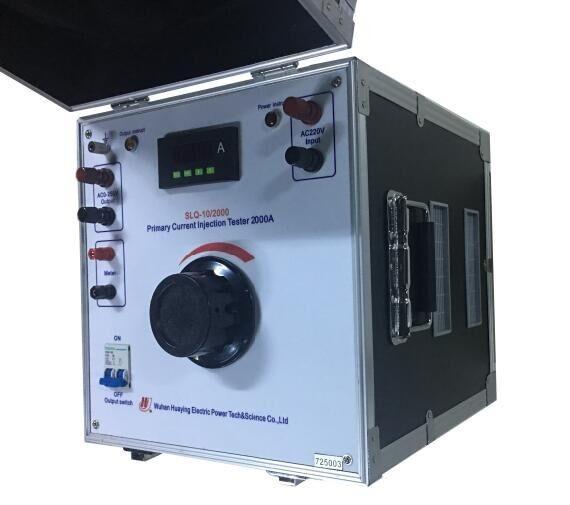

Primary Current Injection Test System SLQ

2. Equipment Description:

​SLQ primary injection test set is a high current generator instrument. It is applied in current transformer test , circuit breaker test and so on. Adjustable output current, smooth in current rise, large scope of load variation, easy and safe operation.

The SLQ primary injection tester has two kinds of model. One is integral box and another is the separated box. The model is depends on the maximum capacity output of the whole tester. If the
whole capacity of the tester is less or equal to 5KVA, the control unit and the current booster will
be designed in one single box. Otherwise the control unit will be a one box and the current booster will be a one box.

3.Technical Parameters:

Type

Capacity

(kva)

Power supply

Output

Impedance voltage %

Idle current %

mode

I

(A)

V

(V)

I

(A)

V

(V)

SLQ-5/500

3

13.6

220

500

5

>8

>6

single

SLQ -5/1000

5

22.7

220

1000

5

>8

>6

single

SLQ -10/2000

10

46

220

2000

5

>8

>6

Separated

SLQ -12/4000

12

30

400

2000/4000

6/3

>8

>6

Separated

SLQ -15/5000

15

37.5

400

2500/5000

6/3

>8

>6

Separated

SLQ -150/25kA

150

375

400

25000

6

>8

>6

Separated

Environment temperature: 0~50°C

Humidity: ≤85%RH
