Laboratory Testing Equipment Circuit Breaker Trip Tester Strong Anti Jamming
Laboratory Testing Equipment Circuit Breaker Trip Tester Strong Anti Jamming
Laboratory Testing Equipment Circuit Breaker Trip Tester Strong Anti Jamming
Laboratory Testing Equipment Circuit Breaker Trip Tester Strong Anti Jamming
Laboratory Testing Equipment Circuit Breaker Trip Tester Strong Anti Jamming
Laboratory Testing Equipment Circuit Breaker Trip Tester Strong Anti Jamming
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO， CE
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Travel range :
< 250mm
resolution ratio :
0.01mm
Time measure error :
±0.5%
Speed measure range :
0—20m/s
Internal Power Output Voltage :
30V—260V error:1%
Output Current :
0～20A
Description

Laboratory Testing Equipment Circuit Breaker Trip Tester Strong Anti Jamming

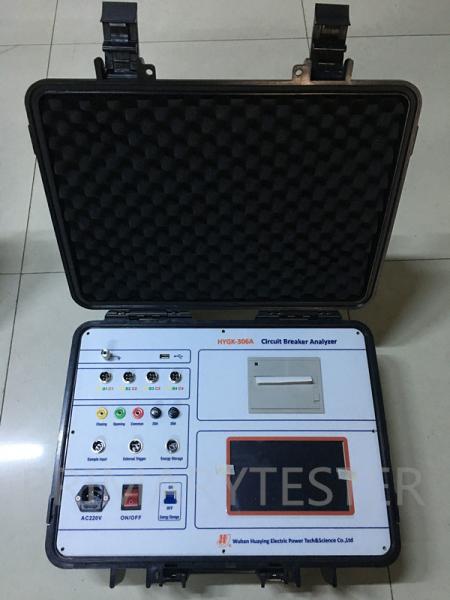

1. Product Name:Circuit breaker analyzer HYGK-306A

2. Equipment Description:

HYGK-306A Circuit Breaker Tester is designed to meet the need of onsite test the dynamic characteristics of High-Voltage Circuit Breakers . It takes the ARM7 unit for core to sample, process and output; the main characteristic is that it’s operated in alt. It has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, light weight ,beautiful appearance, etc; It can test the Circuit Breakers as follows: indoors or outdoors Circuit Breakers with less oil or more oil, vacuum Circuit Breakers, SF6 Circuit Breakers and so on.

3. Main Functions:

1/．12 contacts’ closing time and opening time；
2/．Reclosing time；
3/．Opening or closing’s asynchronism；
4/．springing time or springing times；
5/．clearance between open contacts/gaps, over-travel, over-shoot and springback；
6/．speed at instant of contacts touching (separating)；
7/．Opening (Closing) max speed；
8/．Opening (Closing) average speed；
9/．Display and Print V-S curve
10/．Operating current curve；
11/. Closing resistance measurement
12/. Large color screen in touch operating

4. Technical Parameters:

1．Time
Simultaneity measure Contacts:≤12
range:0—6s
resolution ratio:0.01ms

2．Travel
range:< 250mm
resolution ratio:0.01mm


3．Error
Time measure error:±0.5%
Travel measure error:±1mm


4, Speed measure range:0—20m/s


5．Internal Power
Output Voltage:30V—260V error:1%
Output Current:0～20A

6．Operating conditions
operating voltage:AC220V±10 %
frequency:50Hz
Power dissipation:≤60w
ambient temperature:0~40℃
ambient humidity:≤90%RH
bulk:460X340X200 mm3 weight:7kg
