Electrical Circuit Breaker Breaker Timing Test Equipment 3 Phase Accurate Data

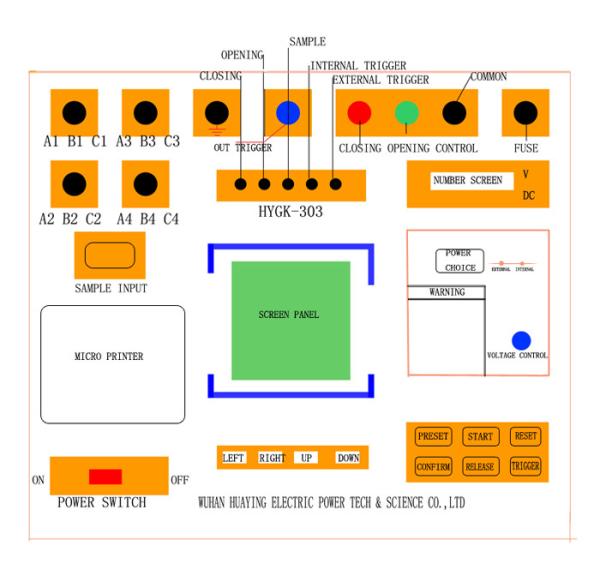

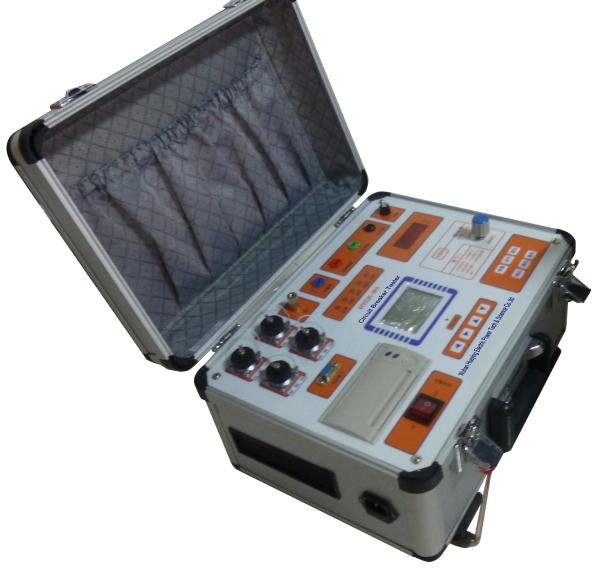

Product Name:Circuit breaker analyzer HYGK-303

Main Functions:

1, Closing and opening time measurement of 12 channels

2, Max difference of closing or opening time measurement of three phases

3, Bounce time and frequency measurement of breaker closing

4, Circuit breaker closing and opening speed measurement

5, Travel-time, Coil current-time curve of circuit breaker operation measurement

6, Clearance of circuit breaker measurement

7, Variable DC circuit breaker operation power supply

8, Print test results by internal micro printers

Equipment Description:

HYGK-303 circuit breaker analyzer is designed to meet the need of testing high_voltage switches .

It takes the micro controller unit(MCU) for core to sample, process and then output; the main characteristic is that it’s operated in Chinese, for example ,the results are displayed and printed in Chinese.

It has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc;

It can test the switches as follows:

indoors or outdoors switches with less oil or more oil,vacuum switches, SF6 switches and so on.

Technical Parameters:

1, Time measurement range: 6000ms, resolution 0.1ms

2, Time measurement error: <1%RDG+0.2ms

3, Speed measurement:

4, Range 2m/s resolution 0.01m/s max error<0.1m/s

5, Range 20m/s resolution 0.01m/s max error<0.2m/s

6, Travel measurement: Range 250.0mmresolution 1mmmax error 1mm

7, DC Power out: DC30V~250V/10A (instantaneous)

8, Travel sensors configuration: grating and angle

9, Test standard: IEC62271

10, LCD: 128*64

11, Power supply: AC220V±10% 50Hz/60Hz

12, Temperature: 0~50°C humidity: <85%
