Light Weight Circuit Breaker Load Tester Easy Carrying For Measuring Hv Switchgears
Light Weight Circuit Breaker Load Tester Easy Carrying For Measuring Hv Switchgears
Light Weight Circuit Breaker Load Tester Easy Carrying For Measuring Hv Switchgears
Light Weight Circuit Breaker Load Tester Easy Carrying For Measuring Hv Switchgears
Specifications
Brand Name :
Huaying
Model Number :
HYGK-306A
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
50 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Time range :
0—6s
Travel range :
< 250mm
Operating voltage： :
AC220V
Display :
LCD touch screen
Time measure error :
±0.5%
Speed measure range :
0—20m/s
Application :
indoors or outdoors Circuit Breakers
Interface :
USB
Description

Light Weight Circuit Breaker Load Tester Easy Carrying For Measuring Hv Switchgears

Product Name:
Circuit breaker analyzer HYGK-306A

Equipment Description:

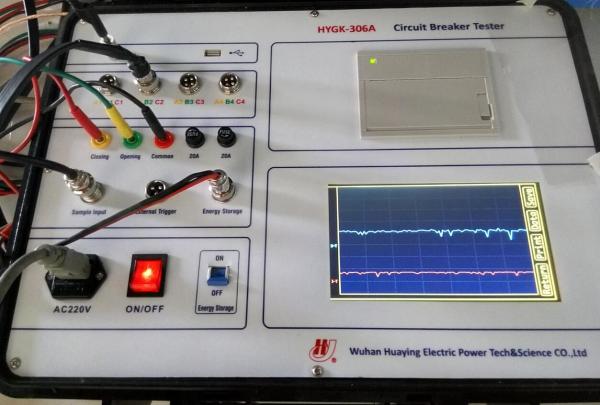

HYGK-306A Circuit Breaker Tester is designed to meet the need of onsite test the dynamic characteristics of High-Voltage Circuit Breakers . It takes the ARM7 unit for core to sample, process and output; the main characteristic is that it’s operated in English.It can test the Circuit Breakers as follows: indoors or outdoors Circuit Breakers with less oil or more oil, vacuum Circuit Breakers, SF6 Circuit Breakers and so on.

Technical Parameters:

Time:
Simultaneity measure Contacts ≤12
range 0—6s
resolution ratio 0.01ms
Travel:
range < 250mm
resolution ratio 0.01mm
Error:
Time measure error ±0.5%
Travel measure error ±1mm
Speed measure range: 0—20m/s
Internal Power:
Output Voltage 30V—260V error:1%
Output Current 0～10A
Operating conditions:
operating voltage AC220V±10 %
frequency 50Hz
Power dissipation ≤60w
ambient temperature 0~40℃
ambient humidity ≤90%RH
bulk 460*340*200 mm3
weight 7kg

Main Functions:
1. 12 contacts’ closing time and opening time；
2. Reclosing time；
3. Opening or closing’s asynchronism；
4. springing time or springing times；
5. clearance between open contacts/gaps, over-travel, over-shoot and springback；
6. speed at instant of contacts touching (separating)；
7. Opening (Closing) max speed；
8. Opening (Closing) average speed；
9. Display and Print V-S curve
10. Operating current curve；
11. Closing resistance measurement
12. Large color screen in touch operating
