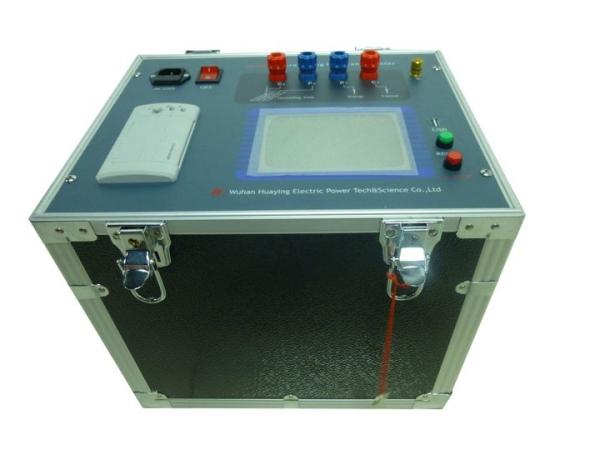

High Precision Instrument Earth Ground Resistance Tester With Touch Large LCD Display
High Precision Instrument Earth Ground Resistance Tester With Touch Large LCD Display
Specifications
Brand Name :
Huaying
Model Number :
HYDW-5A
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Power source :
AC 220V±10%
Measured output voltage :
0V～400V
Test power frequency :
45HZ/55HZ　
Resistance measurement range :
0.001Ω～5Ｋ
Name :
Grounding resistance tester
Weight :
22kg
Description

High Precision Instrument Earth Ground Resistance Tester With Touch Large LCD Display

1. Product Name:

Grounding resistance tester 5A

2. Equipment Description:

1. Measurement scope: 0~150Ω (including impedance of current pile)
2. Resolution: .001Ω
3. Measurement error: ± (reading×2%+0.005Ω)
4. Maximum output voltage: AC 400V (45Hz, 55Hz, double frequency, sine wave)
5. Maximum output current: AC 3A (45Hz, 55Hz, double frequency, sine wave)
6. Current output gears: 3/2.5/2/1.5/1A, one gear every 0.5A, totalling 9 gears.
7. Anti-jamming capacity: power frequency resistance 50Hz voltage 10V
8. Requirement for measuring line:
Sectional area of cooper core of current line≥1.5mm2
Sectional area of cooper core of voltage line≥1.0mm2
9. Electric power supply: AC 220V±10%, 50Hz
10. Contour dimension: 440×350×210mm3
11. Instrument weight: 30kg

3. Main characteristics:

  • Full touch large LCD display

  • Frequency conversion technology and accurate measurement

  • DPS high speed processor

  • Intelligent measurement and control during whole process

  • Mass storage of data

  • PC data processing
