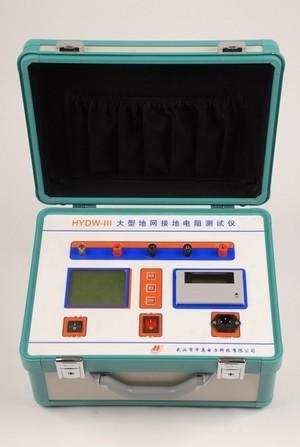

50 Hz Ground Test Equipment Ground Impedance Tester Double Frequency Sine Wave
50 Hz Ground Test Equipment Ground Impedance Tester Double Frequency Sine Wave
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
Huaying Series
MOQ :
1 Set
Price :
Negoiated
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Function :
Grounding Resistance measurement
Power supply :
AC 220V
Frequency :
50Hz
Measurement range :
0-150ohm
Resolution :
0.01ohm
accuracy :
2%
Description

50 Hz Ground Test Equipment Ground Impedance Tester Double Frequency Sine Wave

1. Product Name:

Grounding resistance tester 5A

2. Equipment Description:

1. Measurement scope: 0~150Ω (including impedance of current pile)
2. Resolution: .001Ω
3. Measurement error: ± (reading×2%+0.005Ω)
4. Maximum output voltage: AC 400V (45Hz, 55Hz, double frequency, sine wave)
5. Maximum output current: AC 3A/5A (45Hz, 55Hz, double frequency, sine wave)
6. Current output gears: 3/2.5/2/1.5/1A, one gear every 0.5A, totalling 9 gears.
7. Anti-jamming capacity: power frequency resistance 50Hz voltage 10V
8. Requirement for measuring line:
Sectional area of cooper core of current line≥1.5mm2
Sectional area of cooper core of voltage line≥1.0mm2
9. Electric power supply: AC 220V±10%, 50Hz
10. Contour dimension: 440×350×210mm3
11. Instrument weight: 30kg

3. Features

1) Adopts new type frequency AC power supply

2) Adopts computer process control and signal process, well resolved the anti-jamming problem during the test.

3) Simplify the operation progress.

4) Improve the precision and accuracy of the test results.

5) Reduce the testing personnel labor intensity and test cost.
