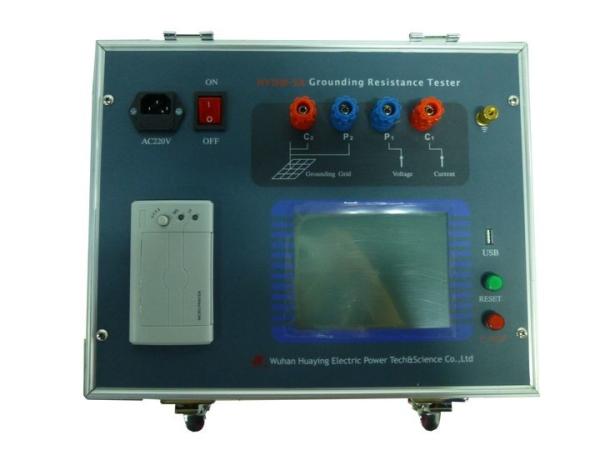

High Precision Instrument Earth Ground Resistance Tester With Touch Large LCD Display
High Precision Instrument Earth Ground Resistance Tester With Touch Large LCD Display
High Precision Instrument Earth Ground Resistance Tester With Touch Large LCD Display
High Precision Instrument Earth Ground Resistance Tester With Touch Large LCD Display
Specifications
Brand Name :
Huaying
Model Number :
HYDW-5A
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Power source :
AC 220V±10%
Measured output voltage :
0V～400V
Test power frequency :
45HZ/55HZ　
Resistance measurement range :
0.001Ω～5Ｋ
Name :
Grounding resistance tester
Weight :
22kg
Description

High Precision Instrument Earth Ground Resistance Tester With Touch Large LCD Display

1. Product Name:

Grounding resistance tester 5A

2. Equipment Description:

1. Measurement scope: 0~150Ω (including impedance of current pile)
2. Resolution: .001Ω
3. Measurement error: ± (reading×2%+0.005Ω)
4. Maximum output voltage: AC 400V (45Hz, 55Hz, double frequency, sine wave)
5. Maximum output current: AC 3A (45Hz, 55Hz, double frequency, sine wave)
6. Current output gears: 3/2.5/2/1.5/1A, one gear every 0.5A, totalling 9 gears.
7. Anti-jamming capacity: power frequency resistance 50Hz voltage 10V
8. Requirement for measuring line:
Sectional area of cooper core of current line≥1.5mm2
Sectional area of cooper core of voltage line≥1.0mm2
9. Electric power supply: AC 220V±10%, 50Hz
10. Contour dimension: 440×350×210mm3
11. Instrument weight: 30kg

3. Main characteristics:

  • Full touch large LCD display

  • Frequency conversion technology and accurate measurement

  • DPS high speed processor

  • Intelligent measurement and control during whole process

  • Mass storage of data

  • PC data processing
